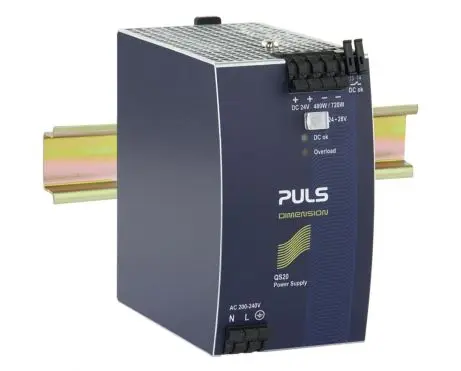

PULS - QS20.244 - 1-PHASE DIN-rail power supplies

Stock Code: QS20.244

Call for availability on 0345 030 60 80

Product Description

PULS - QS20.244 - 1-PHASE DIN-rail power supplies -

The 1-PHASE DIN Rail is efficient, compact and reliable. The QS20.244 feature an easy fuse tripping to due high overload current. This power supply is negligible low inrush current surge with efficiency up to 93%. PULS QS20.244 DIN Rail power supply features a quick connection with its spring-clamp terminals.

In addition, this power supply has Safe HiccupPLUS overload mode. With PULS power supply solutions you can gain 3 significant benefits:

Reduce system costs thanks to very high-efficiency values.
Increase process uptime due to high MTBF (Mean Time Between Failures) and superior lifetime values.
Save space in your system using power supplies with the smallest dimensions

Specifications

Mounting method: DIN rail

Operating temp. Range: -25°C to 70°C

Connection method: Spring Clamps

DC output: 24 - 28 Vdc | 20 - 17 A | 480 W

Input: AC 200 - 240V ( +15%)

Dimensions (WxHxD): 70 x 124 x 117 mm

Weight: 850g
