K32 | Mechanical Pressing and crimping tool

K32 | Mechanical Pressing and crimping tool

K32https://cdn.klauke.com/resources/images/af0b6537-da0d-4442-b859-2c0c425c3a70

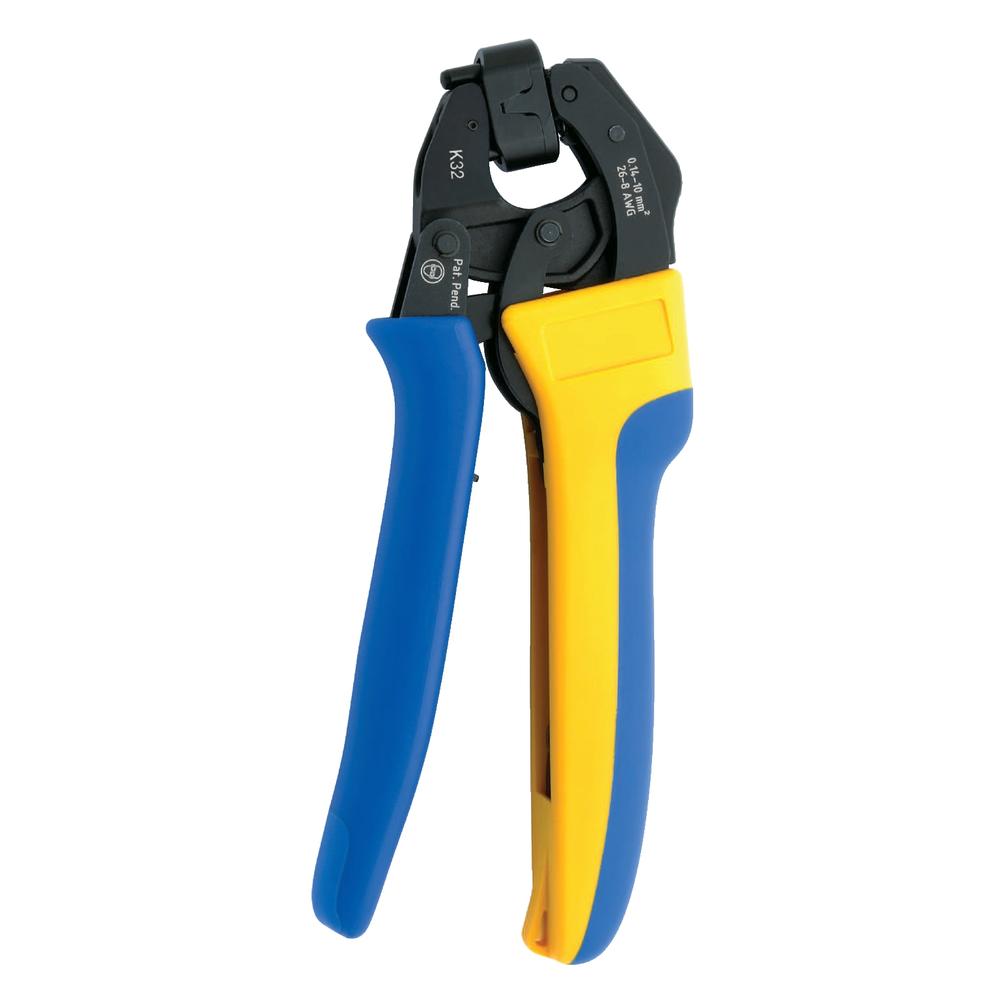

K32 | Mechanical Pressing and crimping tool | TWIST-it crimping tool

The K32 from Klauke (Greenlee) is a TWIST-it crimping tool designed for cable end sleeves a twin cable end-sleeves that range from 0.14 - 10?. This tool has Trapezoid crimping style which is suitable for box terminals. The K32 has one crimping profile for all cross-sections due to automatic cross-section adjustment.

Klauke (Greenlee) is a uniquely high service life and the TWIST-it crimping die allows more flexibility and safety for the users. Additionally, this industrial tool is extremely small, lightweight, and ergonomic. The locking crimping die is for error prevention.

This industrial tool has a range of additional features

  • Quick change between front and lateral sleeve insertion

  • Toothed crimping die for optimum extraction of the crimping connection

  • With ratchet for consistently controlled crimp results

  • With anchor point for attaching a safety rope

  • Ergonomic design with small hand opening angle and balanced weight

Specifications

  • Suitable for Push-in, spring terminal, and screw technology

  • Crimping range of cable end-sleeves: 0.14 - 10 mm²

  • Crimping range of twin cable end-sleeves:  2 x 0.25 - 2 x 4 mm²

  • Dimensions: Length 177 mm | Weight 0.298 kg

GBP 0.00
Stock Code: K32
Call for availability on 0345 030 60 80
Enquiry Only Product
Please contact us for details.
0345 030 60 80
enquiries@cca.co.uk
or click on the Enquiry Now button and fill in the form and one of our sales team members will get in touch to discuss the options.

Product Description

K32 | Mechanical Pressing and crimping tool | TWIST-it crimping tool

The K32 from Klauke (Greenlee) is a TWIST-it crimping tool designed for cable end sleeves a twin cable end-sleeves that range from 0.14 - 10?. This tool has Trapezoid crimping style which is suitable for box terminals. The K32 has one crimping profile for all cross-sections due to automatic cross-section adjustment.

Klauke (Greenlee) is a uniquely high service life and the TWIST-it crimping die allows more flexibility and safety for the users. Additionally, this industrial tool is extremely small, lightweight, and ergonomic. The locking crimping die is for error prevention.

This industrial tool has a range of additional features

  • Quick change between front and lateral sleeve insertion

  • Toothed crimping die for optimum extraction of the crimping connection

  • With ratchet for consistently controlled crimp results

  • With anchor point for attaching a safety rope

  • Ergonomic design with small hand opening angle and balanced weight

Specifications

  • Suitable for Push-in, spring terminal, and screw technology

  • Crimping range of cable end-sleeves: 0.14 - 10 mm²

  • Crimping range of twin cable end-sleeves:  2 x 0.25 - 2 x 4 mm²

  • Dimensions: Length 177 mm | Weight 0.298 kg

PDFfileK32.pdf

Click on any of the following links to download the file.
