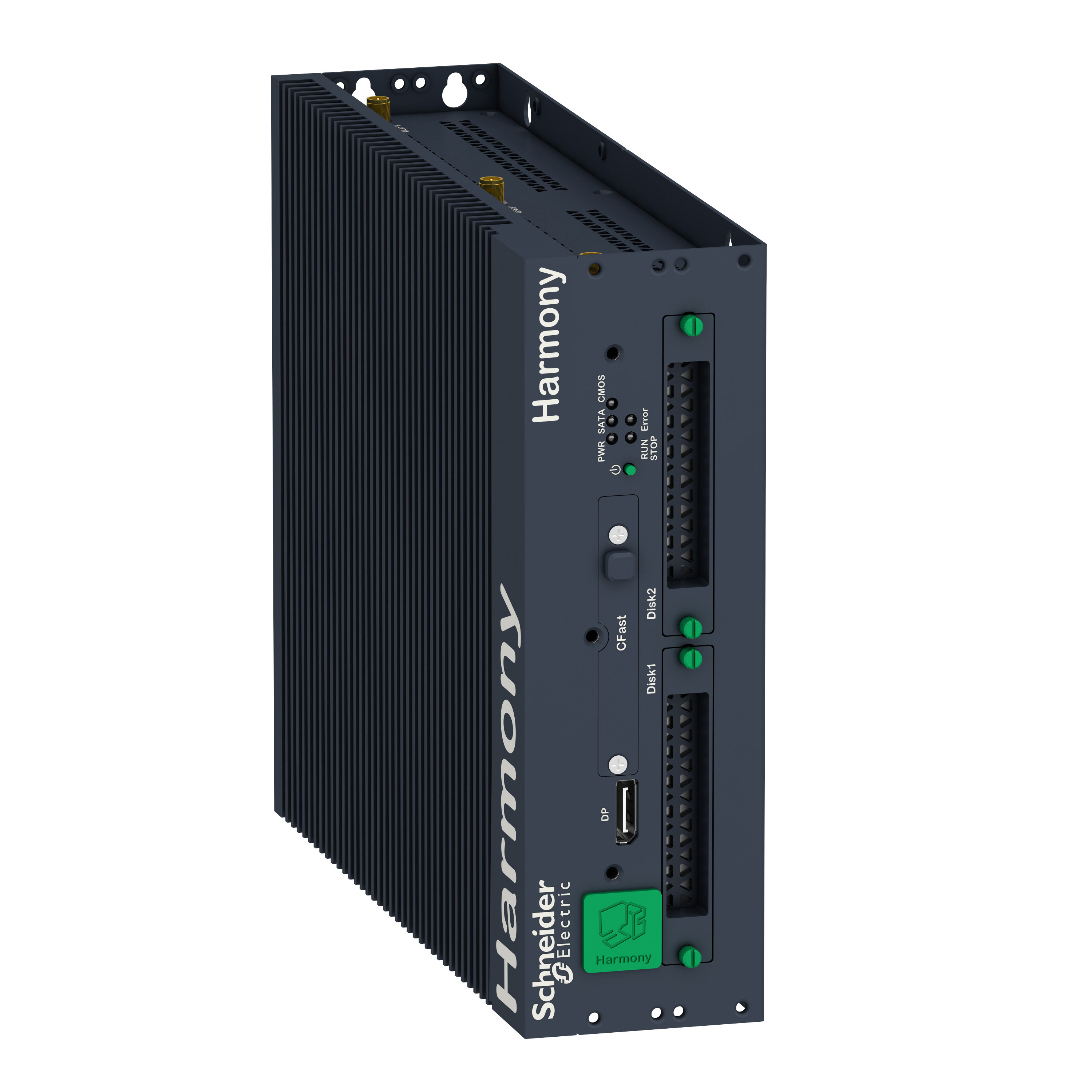

Modular Box PC HMIBM Performance DC Base unit 8GB 2 slots.Label:Magelis iPC-range of product:Magelis iPC-free slots:{""1"":""2018-04-12 13:56:28"",""2"":""2018-04-12 13:56:28"",""3"":""2018-04-12 13:56:28""}-video controller type:Intel HD Graphics 5000-product or component type:modular box PC-operating system:{}-software package:{""1"":""2018-11-30 02:53:09"",""2"":""2018-11-30 02:53:09"",""3"":""2018-11-30 02:53:09"",""4"":""2018-11-30 02:53:09"",""5"":""2018-11-30 02:53:09"",""6"":""2018-11-30 02:53:09""}-device short name:Modular BOX PC Performance-processor name:{""1"":""2018-04-12 13:56:27""}-chipset type:{""1"":""2018-04-12 13:56:27""}-Range Presentation:The industrial PC Magelis Box PC and Panel PC are available in 3 versions:
- Optimum (Panel PC): 0 PCI slot and Intel Atom Z 510 (1,1 Ghz) CPU without fan - Universal: 1or 2 PCI slots and Intel Atom N N270 (1,6 GHz) CPU without fan - Performance: 0 to 5 PCI slots and Intel® Core 2 Duo (2,26 GHz) CPU with DDR3 RAMThey benefit from a complete set of components:
- Removable drives : Compact flash (SLC technology), Flash disk ? 32 Go (SSD) or hard drive ? 250 Go - Up to 5 USB ports and dual Gigabit Ethernet - Up to 2 DVI and 3 serial lines - DVD-RW (depending on the model) - Different Microsoft operating systems (WES2009, XP, Ws 7 64...) - Vijeo Designer run time demo and SCADA Vijeo Citect supervisor optionTThe Magelis iPC range proposes specific options for the most demanding applications:
- Redundant RAID hard disk - Battery back-upThis offer is compatible with Magelis iDisplay screens.-Range Benefits:Select the right industrial PC according to the automation environment:
- For plant field and high performance machines ? Magelis Box PC, Panel PC and iDisplay certified for automation- For repetitive machines and infrastructures ? Magelis S-Box PC- For control rooms ? Magelis Rack PCBenefitsMagelis iPC are ready to be integrated with an IT structure with:
- Dual gigabit Ethernet to separate data flow- Microsoft operating systems- Large data storage- Connectivity to PC devices and data basesMagelis Box PC, Panel PC and iDisplay are robust and certified for automation applications:With a robust construction, according to the model they are certified Industrial Control, Hazardous Locations and Marine. For the most demanding applications, redundant RAID hard disk, battery back-up and stainless steels screen frame are available. They can run directly on plant fields or high performance machines.Their design allows to choose among various configurations. In addition to the pre-defined products from the catalogue, they can be made to order according to the application needs.Magelis S-Box PC: the simplicity by Schneider Electric
- Simple design: all in one and Only 2 models (Optimized and Universal) ?, easy to choose, to order, to install...- Small footprint: downsizing without compromise on capabilities- Serenity of mind: 24/7, 50°C operations, maintenance free,- Smart applications: for repetitive machines and infrastructures requiring Windows, tested, validated and supported in Schneider solutions- Saving of money: just enoughMagelis Rack PC for control rooms
- Consistent to operate the different needs of PlantStruxure architecture (engineering and SCADA servers, operator stations and dedicated industrial applications).- Ease of integration in control room with 19" rack format.- One-stop shopping for a complete plant solution: tested, validated and supported by Schneider Electric with Vijeo Citect and PES engineering software.-Range Application Presentation:Magelis iPC can run Windows in any industrial application, according to the model:
- Industrial environment with heat, dust and vibration: Magelis Panel PC, Box PC, S-Box PC and iDisplay maintenance free without fan, then no filter cleaning and without rotating storage drive.- Demanding industrial environment for cleanliness: Magelis Panel PC with stainless steel front panel- Standard industrial environment: Magelis iPC with hard drive- Control rooms: Rack PC",,,,,,,,,,,,,,,,0,,,,,,,,,,,,,,254 mm,207 mm,65.2 mm,,,https://download.schneider-electric.com/files?p_Doc_Ref=PF143640&p_File_Type=rendition_4000_png,http://se.com/ww/en/product/download-pdf/HMIBMP0I74D2001
