ZB5AZ101 - Harmony XB5, Single contact block with body/fixing collar, plastic, screw clamp terminal,

Stock Code: ZB5AZ101

Call for availability on 0345 030 60 80

Product Description

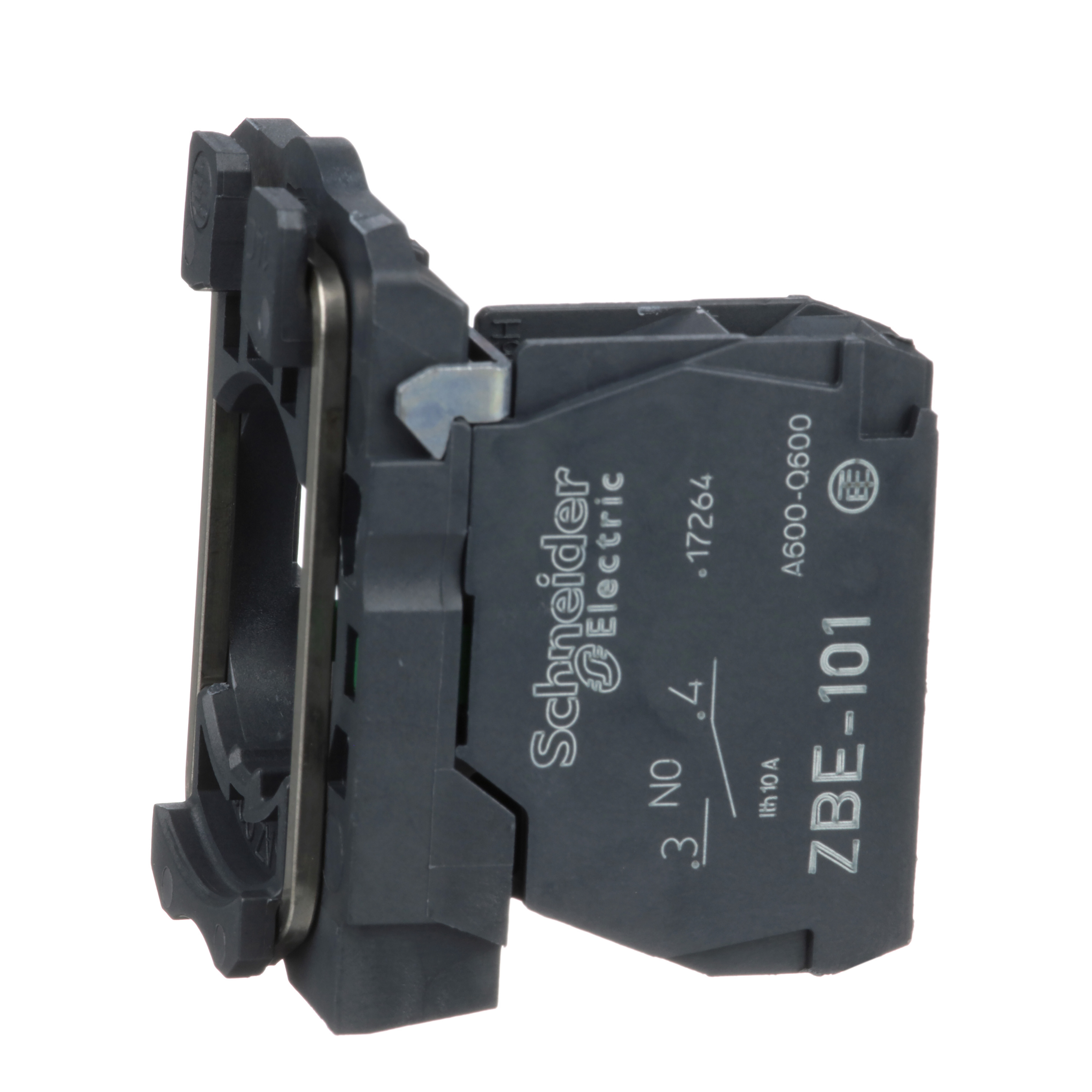

ZB5AZ101 - Harmony XB5, Single contact block with body/fixing collar, plastic, screw clamp terminal,1 NO

The ZB5AZ101 single contact block, allows a fast and easy replacement and configuration of your push buttons and selector switches. The single contact block from Schneider Electric uses screw clamp terminals. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections.

Range of Product: Harmony XB5
Product or Component Type: Complete body/contact assembly
Device short name: ZB5
Fixing Collar Material: Plastic
Contacts Type and Composition: 1 NO
Contact Operation: Slow-break
Contact Block type: Single
Short Circuit protection: 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Additional Information

The ZB5AZ101 protects operators from unexpected contact with live circuits thanks to its ip20 high protecting rating. The single contact block has a wide range of operating temperatures from -40°C to 70°C allowing versatility in the usage of the product. Vibration-resistant screw clamp connection terminals ensure high vibration resistance making the product suitable for installation on high impact machines.
