Schneider Electric - XVBC9M - Tower lights - Harmony XVB

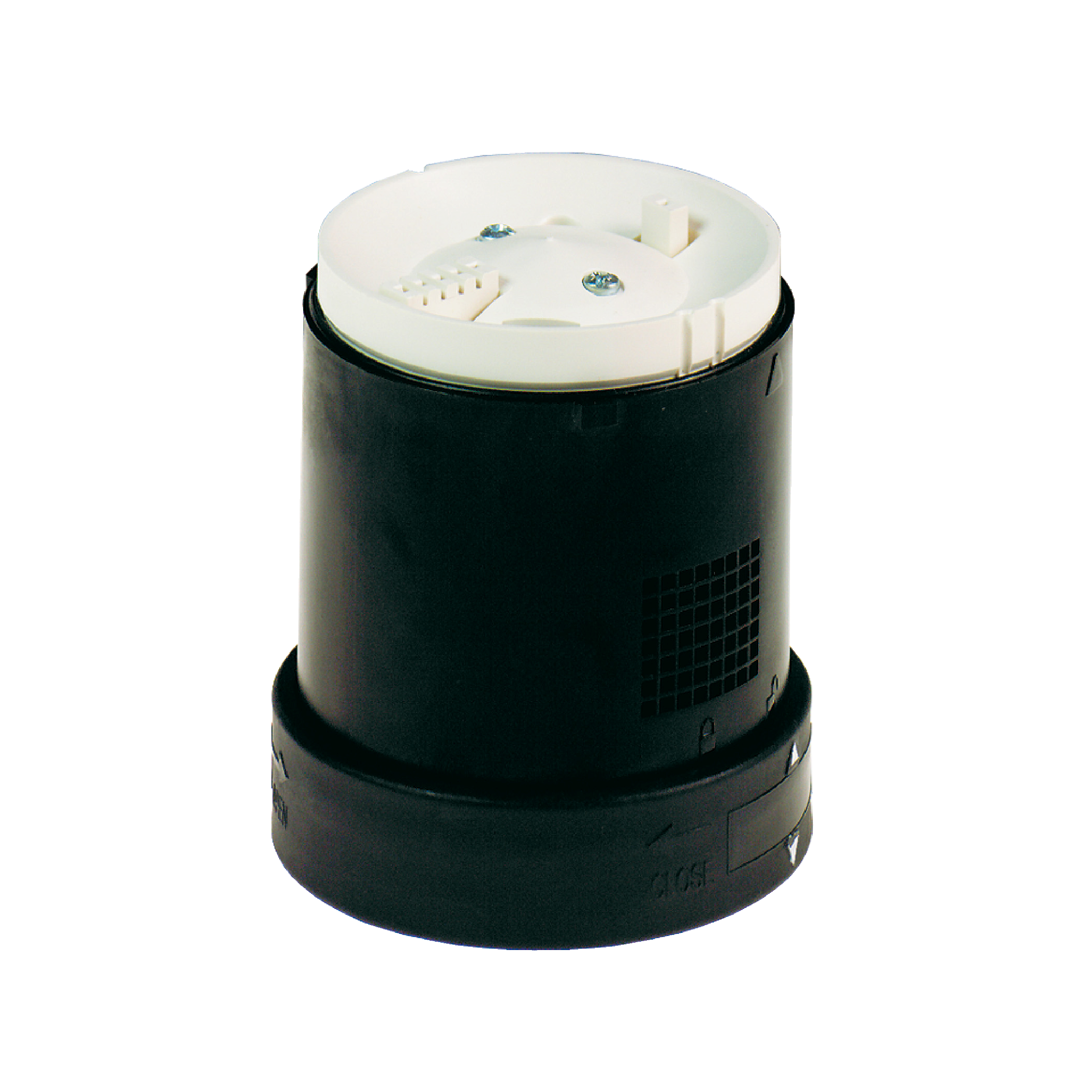

The XVBC8B4 from Schneider Electric Harmony XVB Range is an audible buzzer that is supplied with 12 to 230 V AC/DC. Schneider Electric XVBC8B4 is an indicating bank buzzer that is an accessory designed as an audible and signalling unit for customer assembly.
This has a continuous or intermittent signal and its sound acoustic level is adjustable. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. 90 dB loud buzzer allows for clear alerting on critical machine statuses even from long distance.
Range of product: Harmony XVB Universal
Product or component type: Indicator bank
Beacon or indicator bank unit type: Audible unit
Mounting diameter: 70 mm
Component name: XVBC
Noise level: 70…90 dB at 1 m
[Us] rated supply voltage: 12...230 V AC/DC
Signalling type: Continuous or intermittent buzzer
Assembly style: Customer assembly, up to 5 units
Connections - terminals: Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage: 250 V conforming to IEC 60947-1
Nominal voltage limit: 0.85...1.1 Un conforming to IEC 60947-5-1
Current consumption: < 25 mA
[Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60947-1
Additional Information
Schneider Electric Harmony XVB range offers visual and audible signalling units to indicate the status of a machine throughout 360° and at a distance. This range features Ø 70 mm modular beacons and tower lights that come as readily assembled single illuminated units and variable composition of one to five illuminated or audible units that the user can build.
