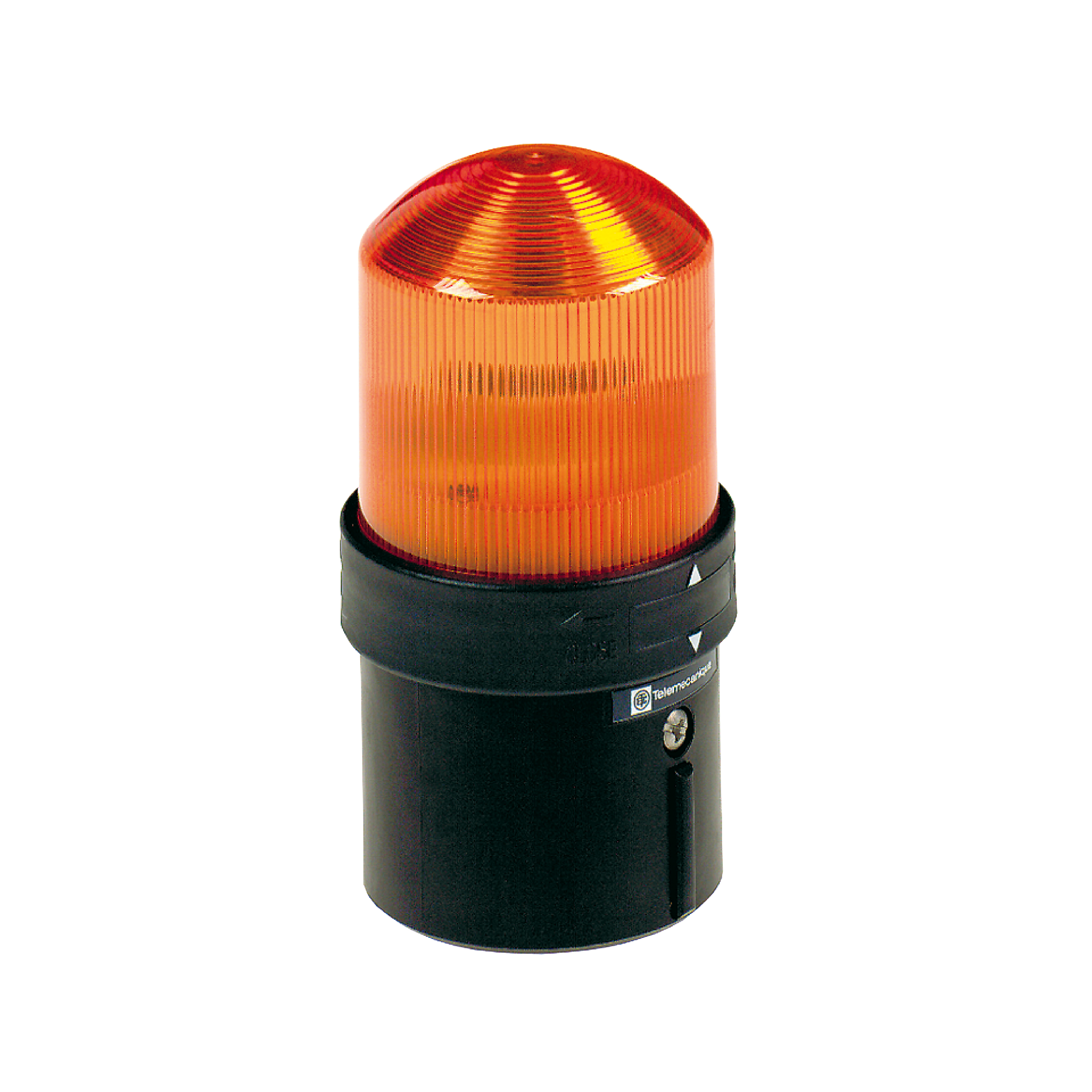

Schneider Electric - XVBL0B5 - Tower lights - Harmony XVB
Schneider Electric has designed the XVBL0B5 as an accessory for a tower light. This illuminated complete beacon has an integral LED that offers a steady Orange light, allow it to clearly display the status of your machines.
It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. 90 dB loud buzzer allows for clear alerting on critical machine statuses even from long distance.
Range of product: Harmony XVB Universal
Product or component type: Complete beacon
Beacon or indicator bank unit type: Base unit direct or tube fixing | Illuminated unit:
Signalling type: Steady
Mounting diameter: 70 mm
Component name: XVBL
Material: Glass-reinforced polyamide: base unit | Polycarbonate: illuminated unit
Light source: Integral LED, orange
Bulb type: Protected LED
[Us] rated supply voltage: 24 V AC/DC
Connections – terminals: Screw clamp terminals, <= 1 x 1.5 mm² with the cable end
[Ui] rated insulation voltage: 250 V conforming to IEC 60947-1
Nominal voltage limit: 0.85...1.1 Un conforming to IEC 60947-5-1
Current consumption: < 47 mA AC/DC
[Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60947-1
Additional Information
Schneider Electric Harmony XVB range offers visual and audible signalling units to indicate the status of a machine throughout 360° and at a distance. This range features Ø 70 mm modular beacons and tower lights that come as readily assembled single illuminated units and variable c
