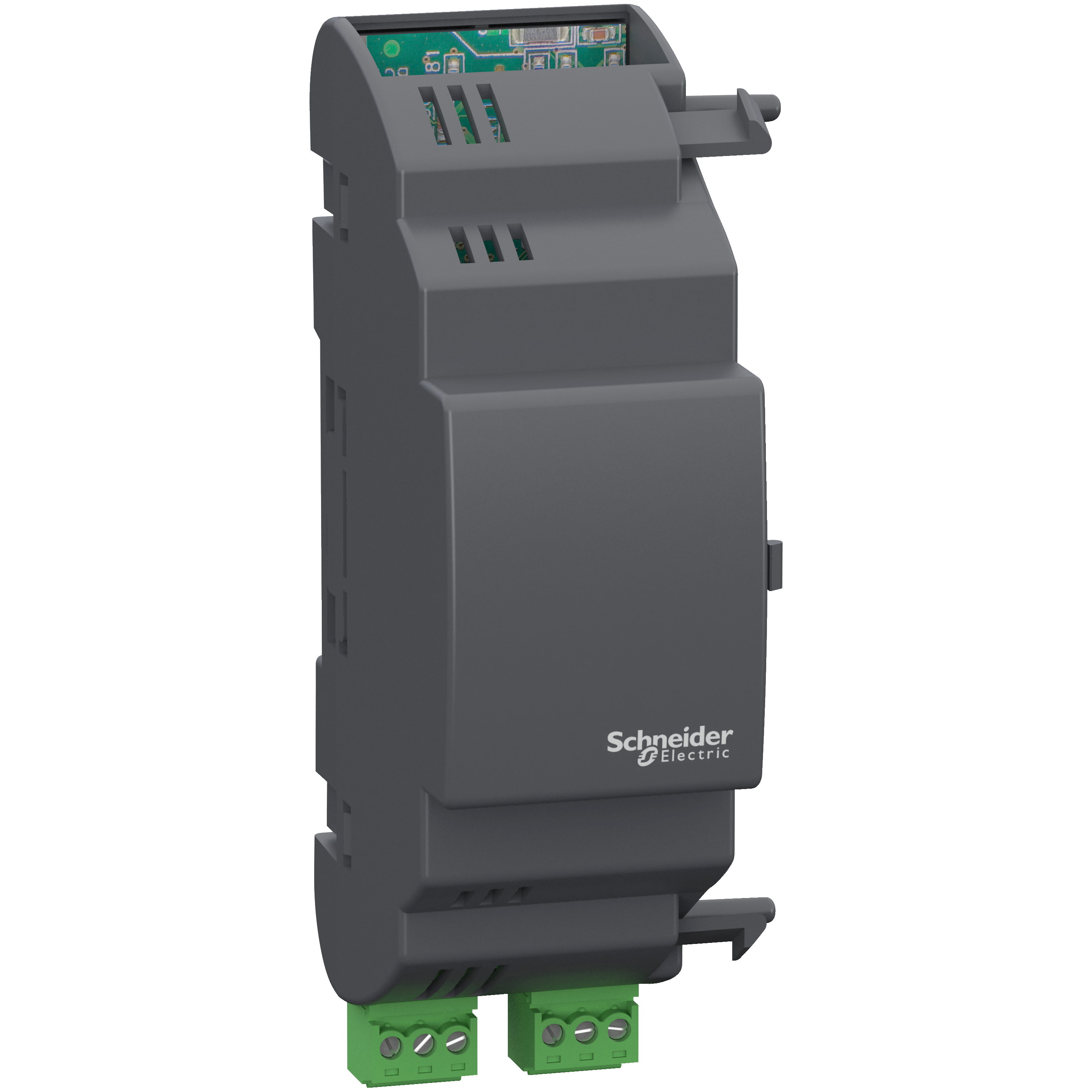

Modicon M171 Performance Plug-in BACnet MSTP or Modbus. Label: Modicon M171/M172 - range of product: Modicon M171 - product or component type: communication module - communication port protocol: RS485,BACnet MS/TP,Modbus RTU - Range Presentation: Modicon M171/M172 logic controllers: best-in-class for scalability and energy efficiency.
The Modicon M171/M172 logic controllers are available in 3 controller types:
* The Modicon M171 optimised logic controller for simple and compact machines is the smallest programmable controller on the market. The Modicon M171 optimised unit can also be flush mounted and requires minimal installation effort, while offering tremendous versatility.
* The Modicon M171 performance logic controller for complex and BMS-connectable machines. This controller provides more powerful memory, I/Os, connectivity and an embedded webserver.
* The Modicon M172 performance logic controller for large and connected machines. For more performance, connectivity and scalabity.
Everything you need is embedded:
Wide choice of digital or analog I/Os, software configurable
Communication protocols: Modbus SL, Modbus TCP, BACnet MS/TP, BACnet/IP, CAN, Profibus, ASCII, LonWorks
The embedded WebVisu function lets you read and write data from the equipment and make corresponding adjustments to its operation from any location
With or without display and buttons, or flush-mounted
Power supply: 12 V DC or 24V AC/DC or 48V DC or 100 to 240 V AC
Simplicity and performance
Thanks to a high degree of flexibility, installing additional modules is very easy - while keeping everything in a single configuration:
Remote displays
Expansion modules
Wall thermostat
Electronic expansion valve driver
Wide range of humidity and temperature probes
Communication plug-in for adding a communication port
Reduced time to market
The Modicon M171/M172-based solutions are faster and easier to deploy thanks to SoMachine HVAC 2.0, Schneider Electric's single platform for programming, visualization, and commissioning. SoMachine HVAC 2.0 offers intuitive, ready-to-use application function blocks (AFB). When implemented together with the Tested, Validated, and Documented Architectures (TVDAs) from Schneider Electric, it greatly reduces design time.
Improved efficiency
SoMachine HVAC 2.0 provides advanced algorithms for greater energy efficiency in Modicon M171/M172-based automation. Dedicated AFBs include energy management, compressor management, fan management, coefficient of performance (COP) monitoring, and floating high pressure control as well as other HVAC- and pumping-related software libraries. Machine builders can simply apply the AFBs while freely developing codes and functions specific to their needs. Additionally, the USB ports on Modicon M171P and Modicon M172P make programming and debugging even easier.
Simplified integration and maintenance
The new Modicon M171/M172 series offers a wide choice of connectivity options to support integration with a variety of BMS. A ready-to-connect device, the new Modicon M172P embeds Ethernet, Modbus and BACnet protocols as standard and LonWorks protocol as optional. Furthermore, maintenance is simplified thanks to the built-in WebVisu, visualization screens that are compatible with standard Web browsers to enable remote control of the applications from mobile devices. - Range Benefits: The following features help you to maximise profitability and energy efficiency by using scalable automation control with the Modicon M171/M172:
Reduce time to market thanks to the intuitive programming software SoMachine HVAC with its ready-to-use applications and function blocks
All of the features and functions you need to design and build machines more profitably are already embedded
Application Function Blocks reduce energy consumption and help to improve system efficiency
Stay connected everywher",,,,,,,,,,,,,,,,0,,,,,,,,,,,,,,,,,,,https://download.schneider-electric.com/files?p_Doc_Ref=PF142332&p_File_Type=rendition_4000_png,http://se.com/ww/en/product/download-pdf/TM171ARS485
