ULTRASONIC SENSOR LABEL FORK 60X3 1224VD

Stock Code: XUVU06M3NSNM8

Call for availability on 0345 030 60 80

Product Description

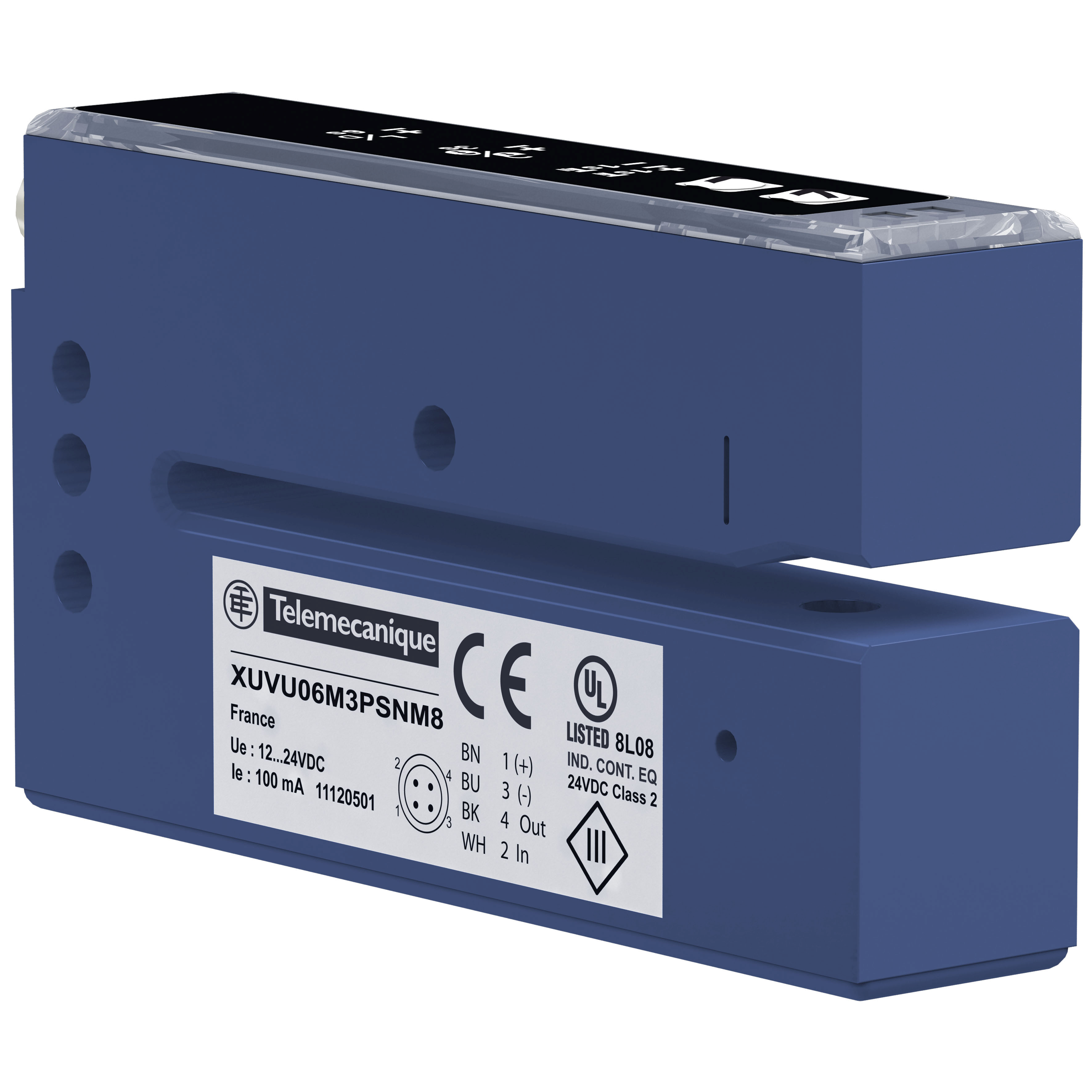

ultrasonic sensor label fork 60x3 - 12..24 V DC - NPN NO/NC connect M8.Label:OsiSense XU-range of product:OsiSense XU-passage width:3 mm-passage depth:69 mm-material:metal-supply circuit type:DC-wiring technique:4-wire-discrete output type:NPN-discrete output function:1 NO or 1 NC programmable-product specific application:detection of transparent labels-series name:Application packaging-electronic sensor type:photo-electric sensor-sensor name:XUV-sensor design:fork-detection system:thru beam-type of setting:with-Range Presentation:General purpose products
Diameter 18 XUB range (up to 20 metres), miniature XUM range (up to 15 m), compact 50X50 XUK range (up to 45m), and compact XUX range (up to 60m) are available in:
- all industrial detection system modes such as: Thru-beam, Reflex, Reflex polarised, Diffuse and Diffuse with background suppression. - in multimode which means all these five detection systems are available in only one reference. This major innovation gives a greater simplicity of choice setup and maintenance management. Fork format, XUV range: the most cost-effective and easy to install photo-fork for small conveyors, packaging and labelling machines.Application products
Available in the most typical formats on the market.
Mark readers, luminescence sensors, transparency detection, colour sensors, aqueous liquid detection, label detection, laser sensors,etc.-Range Benefits:
- All the most industrial photo-electric popular formats available at your Telemecanique sensors distributor next door. - Standard or multimode products. - Plus a wide choice of "applicative" products.-Range Application Presentation:
- Industrial and tertiary general purpose use for small & medium machines, access control.... - Dedicated offer for packaging, handling, assembly, conveying, food & beverage...
