ATEX MINI LIMIT SWITCH

ATEX MINI LIMIT SWITCH

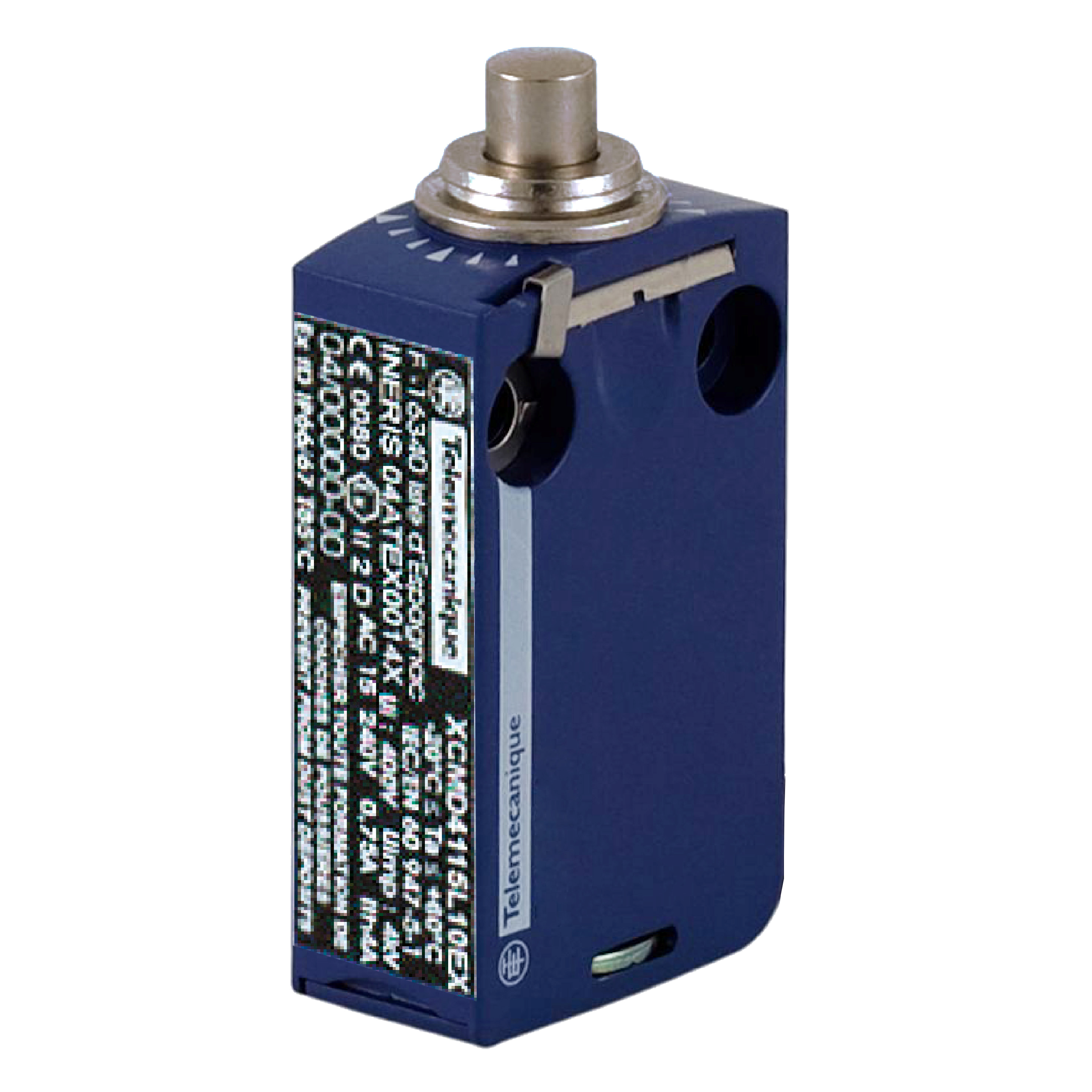

XCMD4110L5EXhttps://download.schneider-electric.com/files?p_Doc_Ref=108190&p_File_Type=rendition_4000_pnglimit switch XCM-D - plunger - 2 x (1 NC + 1 NO) - ATEX. Label: Osischakelaar ATEX D - range of product: OsiSense ATEX D - fixing mode: by the body - movement of operating head: linear - type of operator: spring return plunger metal - switch actuation: on end - type of approach: vertical approach, 1 direction - electrical connection: N/A - series name: standard format - number of poles: 4 - contacts type and composition: 2 x (1 NC + 1 NO) - contacts insulation form: Zb - contact operation: snap action - number of steps: 1 - positive opening: with - product or component type: limit switch - minimum force for tripping: 8.5 N - maximum actuation speed: 0.5 m/s - device short name: XCMD - IP degree of protection: IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 - sensor design: miniature - body type: fixed - head type: plunger head - material: metal - Range Presentation: Certified products, conforming to the European Directive ATEX94/9/CESensors and switches
» Inductive, capacitive and rotation monitoring sensors
» Namur sensors and data processing module
» Limit switches
» Pressure and vacuum switches. - Range Benefits: A wide range of compact and robust products designed to operate in hazardous environments. - Range Application Presentation: What is an explosive atmosphere? According to the Directive, it is the mixing with air, in atmospheric conditions, of flammable substances in the form of gas, vapour, mist or dust which, in the event of combustion, spreads throughout the non burning mix.
GBP
Stock Code: XCMD4110L5EX
Call for availability on 0345 030 60 80
261.48£217.90 (exc VAT) per 1
£261.48 (inc VAT)
Quantity: - +

Product Description

limit switch XCM-D - plunger - 2 x (1 NC + 1 NO) - ATEX. Label: Osischakelaar ATEX D - range of product: OsiSense ATEX D - fixing mode: by the body - movement of operating head: linear - type of operator: spring return plunger metal - switch actuation: on end - type of approach: vertical approach, 1 direction - electrical connection: N/A - series name: standard format - number of poles: 4 - contacts type and composition: 2 x (1 NC + 1 NO) - contacts insulation form: Zb - contact operation: snap action - number of steps: 1 - positive opening: with - product or component type: limit switch - minimum force for tripping: 8.5 N - maximum actuation speed: 0.5 m/s - device short name: XCMD - IP degree of protection: IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 - sensor design: miniature - body type: fixed - head type: plunger head - material: metal - Range Presentation: Certified products, conforming to the European Directive ATEX94/9/CESensors and switches
» Inductive, capacitive and rotation monitoring sensors
» Namur sensors and data processing module
» Limit switches
» Pressure and vacuum switches. - Range Benefits: A wide range of compact and robust products designed to operate in hazardous environments. - Range Application Presentation: What is an explosive atmosphere? According to the Directive, it is the mixing with air, in atmospheric conditions, of flammable substances in the form of gas, vapour, mist or dust which, in the event of combustion, spreads throughout the non burning mix.

Width30 mm
Depth16 mm
