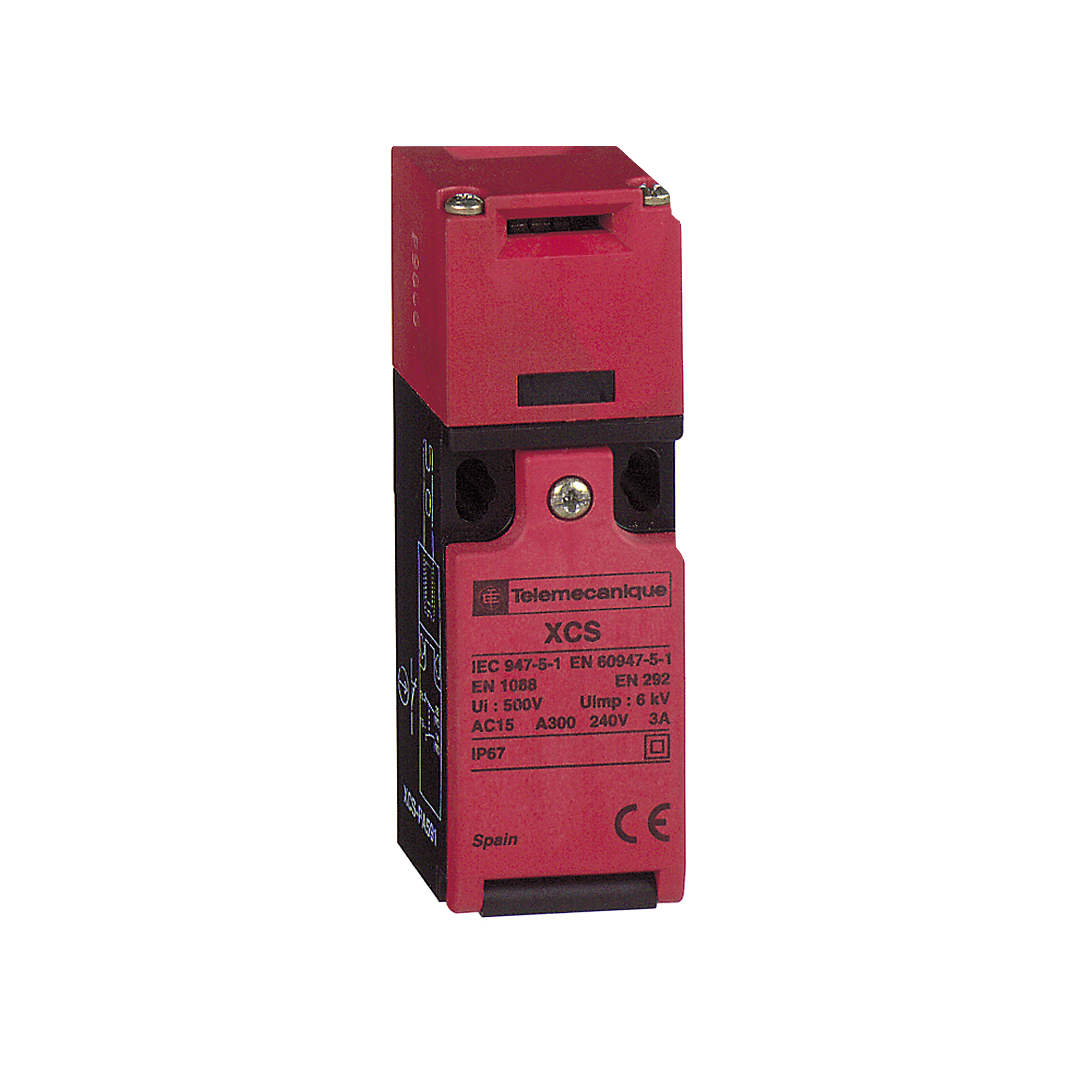

LIMIT SWITCH FOR SAFETY APPLICATION XCSP

plastic safety switch XCSPA - 1 NC + 1 NO - slow break - 1 entry tapped M16.Label:Preventa XCS-range of product:Preventa Safety detection-cable outer diameter:7-10 mm-product or component type:safety switch-number of poles:2-locking options description:without locking of actuator-component name:XCSPA-design:compact-material:plastic-head type:key operated turret head-contacts type and composition:1 NC + 1 NO-contact operation:slow-break, break before make-Range Presentation:Protection of operators by stopping the machine when the actuator attached to the machine guard is withdrawn from the head of the switch. - For heavy duty industrial machines with quick rundown time: Key operated switches XCSA, XCSB, XCSC slow rundown time: Key operated switches with solenoid XCSLF, XCSE - For light industrial machines with quick rundown time: Key operated switches XCSMP, XCSPA, XCSTA with slow rundown time: Key operated switches with solenoid XCSLE, XCSTE Protection of operators by stopping the light industrial machine with quick rundown time when - the operating lever attached to the hinged machine guard is displaced by 5°: safety switches XCSPL, XCSTL the guard hinge rotates through safety switches XCSPR, XCSTR - the gate with imprecise guidance and/or subject to frequent washing is opened Coded magnetic switches: XCSDMC, XCSDMP, XCSDMR Coded magnetic system, complete device including both coded magnetic and safety module: XCSDM3, XCSDM4 Protection of operators by stopping heavy or light industrial machine with quick rundown time when the gate is opened: Safety limit switches XCSM, XCSD, XCSP-Range Benefits:One of the most comprehensive catalogues of industrial safety switches on the market. Save time in setting up, and place and in the cabinet with our innovative coded magnetic system. Increase productivity thanks to the third contact dedicated to diagnostics-Range Application Presentation:As far as safety is concerned all dangerous machines in all sectors are involved. Such as packaging, handling, robotics, machine tools, presses, automotive sector.

Stock Code: XCSPA592

Call for availability on 0345 030 60 80

Product Description

plastic safety switch XCSPA - 1 NC + 1 NO - slow break - 1 entry tapped M16.Label:Preventa XCS-range of product:Preventa Safety detection-cable outer diameter:7-10 mm-product or component type:safety switch-number of poles:2-locking options description:without locking of actuator-component name:XCSPA-design:compact-material:plastic-head type:key operated turret head-contacts type and composition:1 NC + 1 NO-contact operation:slow-break, break before make-Range Presentation:Protection of operators by stopping the machine when the actuator attached to the machine guard is withdrawn from the head of the switch.
- For heavy duty industrial machines with
quick rundown time: Key operated switches XCSA, XCSB, XCSC
slow rundown time: Key operated switches with solenoid XCSLF, XCSE - For light industrial machines
with quick rundown time: Key operated switches XCSMP, XCSPA, XCSTA
with slow rundown time: Key operated switches with solenoid XCSLE, XCSTE Protection of operators by stopping the light industrial machine with quick rundown time when
- the operating lever attached to the hinged machine guard is displaced by 5°:
safety switches XCSPL, XCSTL
the guard hinge rotates through safety switches XCSPR, XCSTR - the gate with imprecise guidance and/or subject to frequent washing is opened
Coded magnetic switches: XCSDMC, XCSDMP, XCSDMR
Coded magnetic system, complete device including both coded magnetic and safety module: XCSDM3, XCSDM4 Protection of operators by stopping heavy or light industrial machine with quick rundown time when the gate is opened: Safety limit switches XCSM, XCSD, XCSP-Range Benefits:One of the most comprehensive catalogues of industrial safety switches on the market.
Save time in setting up, and place and in the cabinet with our innovative coded magnetic system.
Increase productivity thanks to the third contact dedicated to diagnostics-Range Application Presentation:As far as safety is concerned all dangerous machines in all sectors are involved. Such as packaging, handling, robotics, machine tools, presses, automotive sector.
