MULTIFUNC TIMER 1C O 24VAC DC 240VAC

MULTIFUNC TIMER 1C O 24VAC DC 240VAC

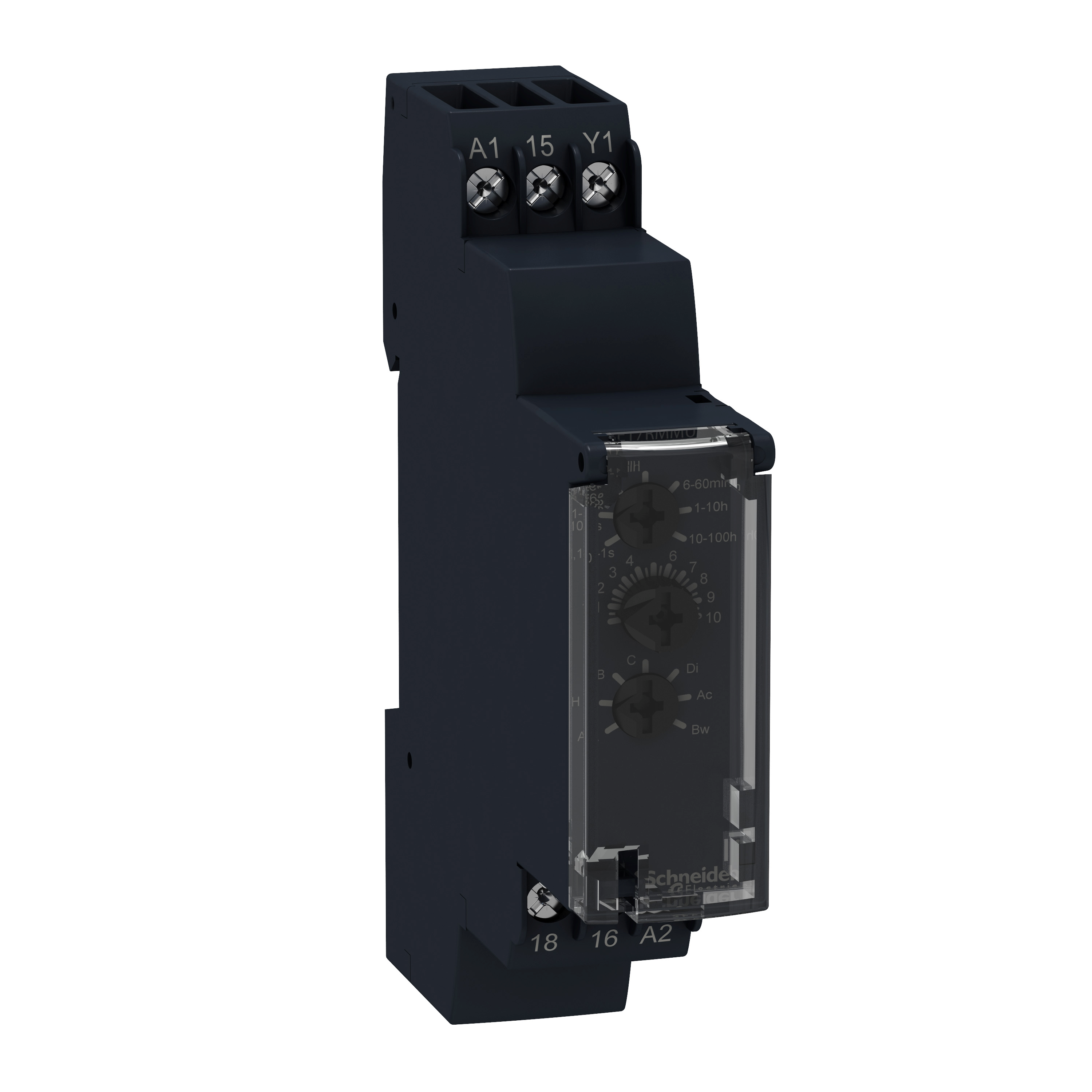

RE17RMMUhttps://download.schneider-electric.com/files?p_Doc_Ref=PF153312&p_File_Type=rendition_4000_pngtime delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC.Label:Zelio Time-range of product:Zelio Time-nominal output current:8 A-product or component type:modular timing relay-discrete output type:relay-width:17.5 mm-device short name:RE17R-time delay type:C,A,B,At,D,Ht,Bw,Di,H,Ac-time delay range:6...60 min,1...10 h,0.1...1 s,1...10 s,1...10 min,10...100 h,6...60 s-Range Presentation:
- Multifunction- Relay or solid state output- Wide voltage range from 24 to 240 V- Single timing range or multi-range from 50 ms to 300 hrs- Conformity with IEC 61812-1, EN 61812-1 standards-Range Benefits:Timer relays that are simply ingenious Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.-Range Application Presentation:
- Industry and building: simple machine control panels, process control. - Applications requiring frequent and simple adjustment of cycle times.
GBP
Stock Code: RE17RMMU
Call for availability on 0345 030 60 80
71.95£59.96 (exc VAT) per 1
£71.95 (inc VAT)
Quantity: - +

Product Description

time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC.Label:Zelio Time-range of product:Zelio Time-nominal output current:8 A-product or component type:modular timing relay-discrete output type:relay-width:17.5 mm-device short name:RE17R-time delay type:C,A,B,At,D,Ht,Bw,Di,H,Ac-time delay range:6...60 min,1...10 h,0.1...1 s,1...10 s,1...10 min,10...100 h,6...60 s-Range Presentation:
- Multifunction- Relay or solid state output- Wide voltage range from 24 to 240 V- Single timing range or multi-range from 50 ms to 300 hrs- Conformity with IEC 61812-1, EN 61812-1 standards-Range Benefits:Timer relays that are simply ingenious Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.-Range Application Presentation:
- Industry and building: simple machine control panels, process control. - Applications requiring frequent and simple adjustment of cycle times.

Weight0.08
Width17.5 mm
Height90 mm
Depth72 mm
