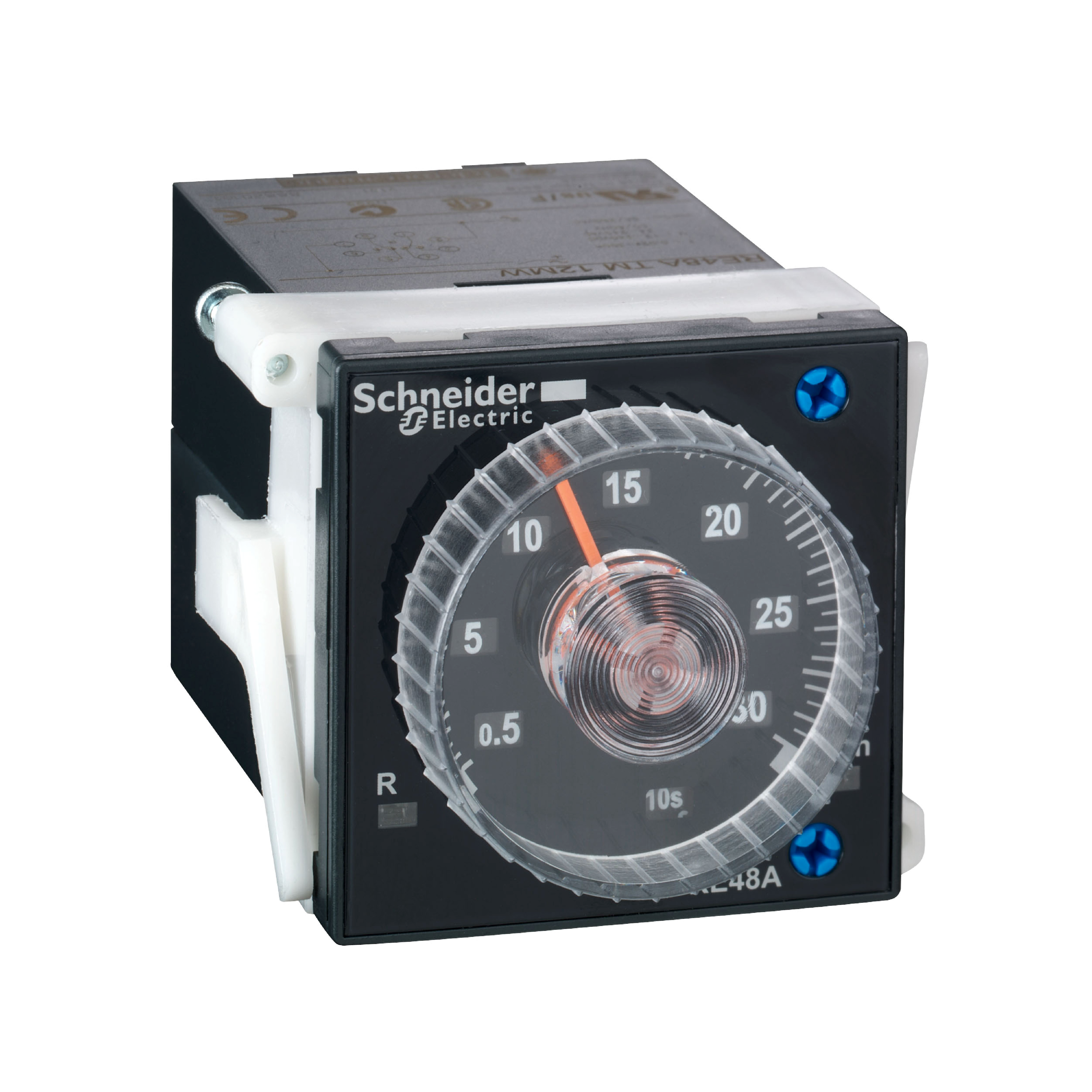

ON-DELAY PLUG TIMER 2 C/O

ON-DELAY PLUG TIMER 2 C/O

RE48ATM12MWhttps://download.schneider-electric.com/files?p_Doc_Ref=PF110452&p_File_Type=rendition_4000_pngon-delay timing relay - 0.02 s..300 h - 24..240 V AC - 2 OC.Label:Zelio Time-range of product:Zelio Time-[In] rated current:5 A-product or component type:electronic timing relay-discrete output type:relay-component name:RE48-time delay type:A-time delay range:5...300 h,2...120 min,0.5...30 h,0.2...12 h,0.2...12 min,0.2...12 s,0.5...30 min,2...120 h,2...120 s,0.02...1.2 s,0.5...30 s,5...300 s,0.05...3 s,5...300 min-Range Presentation:
- Multifunction- Relay or solid state output- Wide voltage range from 24 to 240 V- Single timing range or multi-range from 50 ms to 300 hrs- Conformity with IEC 61812-1, EN 61812-1 standards-Range Benefits:Timer relays that are simply ingenious Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.-Range Application Presentation:
- Industry and building: simple machine control panels, process control. - Applications requiring frequent and simple adjustment of cycle times.
GBP
Stock Code: RE48ATM12MW
Call for availability on 0345 030 60 80
97.34£81.12 (exc VAT) per 1
£97.34 (inc VAT)
Quantity: - +

Product Description

on-delay timing relay - 0.02 s..300 h - 24..240 V AC - 2 OC.Label:Zelio Time-range of product:Zelio Time-[In] rated current:5 A-product or component type:electronic timing relay-discrete output type:relay-component name:RE48-time delay type:A-time delay range:5...300 h,2...120 min,0.5...30 h,0.2...12 h,0.2...12 min,0.2...12 s,0.5...30 min,2...120 h,2...120 s,0.02...1.2 s,0.5...30 s,5...300 s,0.05...3 s,5...300 min-Range Presentation:
- Multifunction- Relay or solid state output- Wide voltage range from 24 to 240 V- Single timing range or multi-range from 50 ms to 300 hrs- Conformity with IEC 61812-1, EN 61812-1 standards-Range Benefits:Timer relays that are simply ingenious Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.-Range Application Presentation:
- Industry and building: simple machine control panels, process control. - Applications requiring frequent and simple adjustment of cycle times.

No detailed specifications are available for this product.
