Schneider Electric CIRCUIT BREAKER COMPACT NS1000N MICROLOG

Schneider Electric CIRCUIT BREAKER COMPACT NS1000N MICROLOG

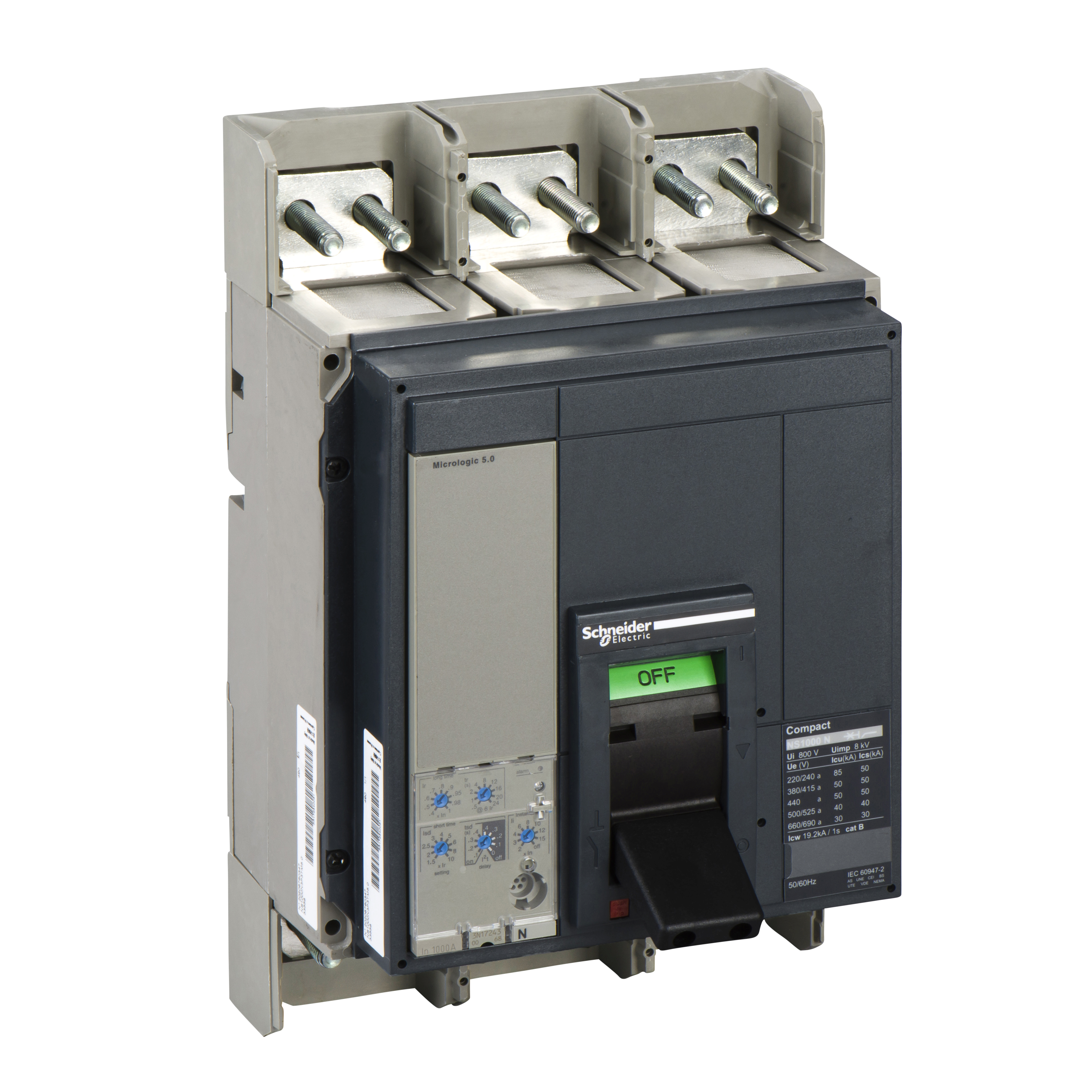

33558https://download.schneider-electric.com/files?p_Doc_Ref=ODA33558&p_File_Type=rendition_4000_pngcircuit breaker Compact NS1000N - Micrologic 5.0 - 1000 A - 3 poles 3t. Label: Compact NS 630A - range: Compact - network type: AC - range of product: NS630b...1600 - breaking capacity code: N - suitability for isolation: yes conforming to IEC 60947-2 - utilisation category: category B - product or component type: circuit breaker - product name: Compact NS - trip unit name: Micrologic 5.0 - trip unit technology: electronic - trip unit rating: 1000-1000 A at 50 °C - device short name: Compact NS1000N - circuit breaker name: Compact NS1000N - device application: distribution - poles description: 3P - protected poles description: 3t - Range Presentation: - Nominal current from 630 to 3200 A - 2 breaking capacities:200kA at 440V - 75kA at 690V for 630 and 800A LB frames - 4 breaking performances from 50 to 150 kA at 415 V - Voltage rating:up to 690 V - 2 physical sizes from 630 to 3200 A - A single pole pitch of 70 mm - 3 and 4-pole versions - solation with positive break indication - 4 Micrologic control units enriched by measurement, energy management and network analysis functions - Earth leakage protection built into electronic protection Wide range of common auxiliaries and accessories interchangeable on site - Compliance with international standards IEC 60947-1 and 2, IEC 68230 for type 2 tropicalisation - Compliance with specifications of marine classification companies:Bureau Veritas, Lloyd's Register of Shipping, Det Norske Veritas, etc. - Range Benefits: In a strong position because of its 10 years of success responsible for its reputation for excellence, the Compact NS system now takes another step ahead to cover strong currents from 630 to 3200 A. This range extension makes it a totally complete and consistent system, thus simplifying choices in terms of LV electrical installation protection, whilst proposing solutions adapted to all configurations. - Range Application Presentation: Protection of LV electrical installations in all tertiary and industrial buildings and in particular: - Electrical network protection - Motor protection - Generator protection
GBP
Stock Code: 33558
Call for availability on 0345 030 60 80
This item is Obsolete
119999.99£99,999.99 (exc VAT) per 1
£119,999.99 (inc VAT)
Quantity: - +

Product Description

circuit breaker Compact NS1000N - Micrologic 5.0 - 1000 A - 3 poles 3t. Label: Compact NS 630A - range: Compact - network type: AC - range of product: NS630b...1600 - breaking capacity code: N - suitability for isolation: yes conforming to IEC 60947-2 - utilisation category: category B - product or component type: circuit breaker - product name: Compact NS - trip unit name: Micrologic 5.0 - trip unit technology: electronic - trip unit rating: 1000-1000 A at 50 °C - device short name: Compact NS1000N - circuit breaker name: Compact NS1000N - device application: distribution - poles description: 3P - protected poles description: 3t - Range Presentation: - Nominal current from 630 to 3200 A - 2 breaking capacities:200kA at 440V - 75kA at 690V for 630 and 800A LB frames - 4 breaking performances from 50 to 150 kA at 415 V - Voltage rating:up to 690 V - 2 physical sizes from 630 to 3200 A - A single pole pitch of 70 mm - 3 and 4-pole versions - solation with positive break indication - 4 Micrologic control units enriched by measurement, energy management and network analysis functions - Earth leakage protection built into electronic protection Wide range of common auxiliaries and accessories interchangeable on site - Compliance with international standards IEC 60947-1 and 2, IEC 68230 for type 2 tropicalisation - Compliance with specifications of marine classification companies:Bureau Veritas, Lloyd's Register of Shipping, Det Norske Veritas, etc. - Range Benefits: In a strong position because of its 10 years of success responsible for its reputation for excellence, the Compact NS system now takes another step ahead to cover strong currents from 630 to 3200 A. This range extension makes it a totally complete and consistent system, thus simplifying choices in terms of LV electrical installation protection, whilst proposing solutions adapted to all configurations. - Range Application Presentation: Protection of LV electrical installations in all tertiary and industrial buildings and in particular: - Electrical network protection - Motor protection - Generator protection

Width210 mm
Height327 mm
Depth147 mm
