Schneider Electric 4P NSX630N WITHOUT TRIP UNIT COMPACT CI

Schneider Electric 4P NSX630N WITHOUT TRIP UNIT COMPACT CI

LV432808https://download.schneider-electric.com/files?p_Doc_Ref=PB103293&p_File_Type=rendition_4000_pngcircuit breaker Compact NSX630N - 630 A - 4 poles - without trip unit. Label: Compact NSX 630A - range: Compact - network type: AC - network frequency: 50/60 Hz - [In] rated current: 630 A at 40 °C - [Ui] rated insulation voltage: N/A - [Uimp] rated impulse withstand voltage: N/A - range of product: NSX400...630 - [Ue] rated operational voltage: N/A - breaking capacity code: N - breaking capacity: N/A, N/A, N/A, N/A, N/A, N/A, N/A, N/A, N/A - suitability for isolation: yes conforming to EN 60947-2, yes conforming to IEC 60947-2 - utilisation category: category A - product name: Compact NSX - product or component type: basic frame - pollution degree: 3 conforming to IEC 60947-1 - device short name: Compact NSX630N - device application: distribution - circuit breaker name: Compact NSX630N - poles description: 4P - neutral position: left - Range Presentation: The Compact NSX combines intelligent metering and monitoring with impeccable protective functions. Features include: - Nominal current: 16 to 630 A - Five breaking performances from 36 to 150 kA at 415 V - Voltage rating: up to 690 V - Two physical sizes from 16 to 630 A - 3 and 4 pole versions available - Isolation with positive break indication - Large range of electronic and thermal-magnetic protections - Earth leakage protection by associated Vigi Module - Measure of main electrical values: I, U, P, E, THD, f, CosF - Wide range of common auxiliaries and accessories interchangeable on site - Plug and play wiring system and communicating accessories - Compliance with international standards: IEC 60947-1 and 2, Nema, IEC 68230 for type 2 tropicalisation, CCC - Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd's Register of Shipping, Det Norske Veritas and RINA. - Range Benefits: Always first - Integrated power monitoring unit: Energy efficient - New breaking capacities: Performance - Interchangeable: Increased safety - Simple installation procedures: Easy to install - Range Application Presentation: - Commercial buildings - Hospitals - Steel industry - Marine
GBP
Stock Code: LV432808
Call for availability on 0345 030 60 80
This item is Obsolete
119999.99£99,999.99 (exc VAT) per 1
£119,999.99 (inc VAT)
Quantity: - +

Product Description

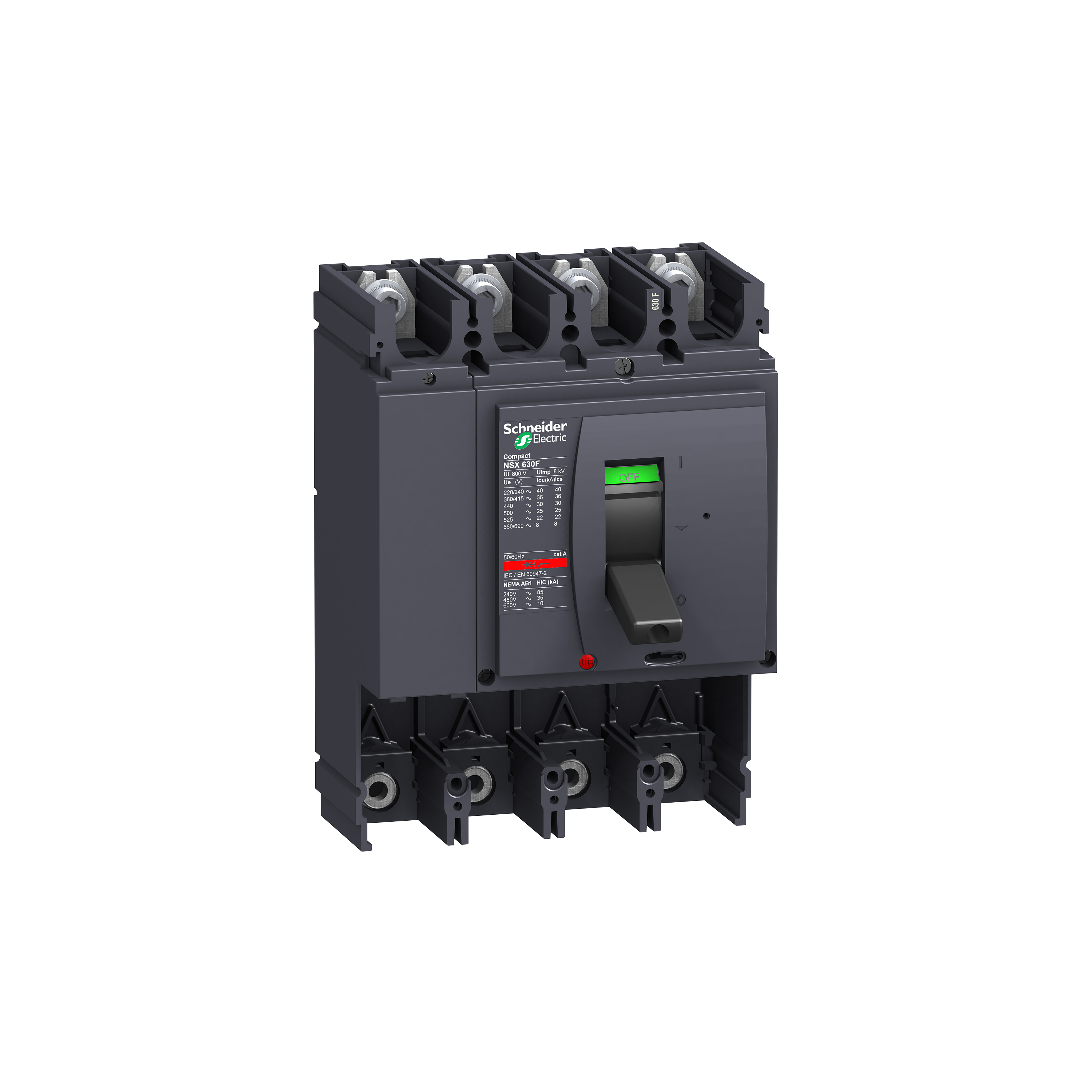

circuit breaker Compact NSX630N - 630 A - 4 poles - without trip unit. Label: Compact NSX 630A - range: Compact - network type: AC - network frequency: 50/60 Hz - [In] rated current: 630 A at 40 °C - [Ui] rated insulation voltage: N/A - [Uimp] rated impulse withstand voltage: N/A - range of product: NSX400...630 - [Ue] rated operational voltage: N/A - breaking capacity code: N - breaking capacity: N/A, N/A, N/A, N/A, N/A, N/A, N/A, N/A, N/A - suitability for isolation: yes conforming to EN 60947-2, yes conforming to IEC 60947-2 - utilisation category: category A - product name: Compact NSX - product or component type: basic frame - pollution degree: 3 conforming to IEC 60947-1 - device short name: Compact NSX630N - device application: distribution - circuit breaker name: Compact NSX630N - poles description: 4P - neutral position: left - Range Presentation: The Compact NSX combines intelligent metering and monitoring with impeccable protective functions. Features include: - Nominal current: 16 to 630 A - Five breaking performances from 36 to 150 kA at 415 V - Voltage rating: up to 690 V - Two physical sizes from 16 to 630 A - 3 and 4 pole versions available - Isolation with positive break indication - Large range of electronic and thermal-magnetic protections - Earth leakage protection by associated Vigi Module - Measure of main electrical values: I, U, P, E, THD, f, CosF - Wide range of common auxiliaries and accessories interchangeable on site - Plug and play wiring system and communicating accessories - Compliance with international standards: IEC 60947-1 and 2, Nema, IEC 68230 for type 2 tropicalisation, CCC - Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd's Register of Shipping, Det Norske Veritas and RINA. - Range Benefits: Always first - Integrated power monitoring unit: Energy efficient - New breaking capacities: Performance - Interchangeable: Increased safety - Simple installation procedures: Easy to install - Range Application Presentation: - Commercial buildings - Hospitals - Steel industry - Marine

Width185 mm
Height255 mm
Depth110 mm
