Rotary Handle red recessed 4screw fixing

Stock Code: VLSH1S5R

Call for availability on 0345 030 60 80

Product Description

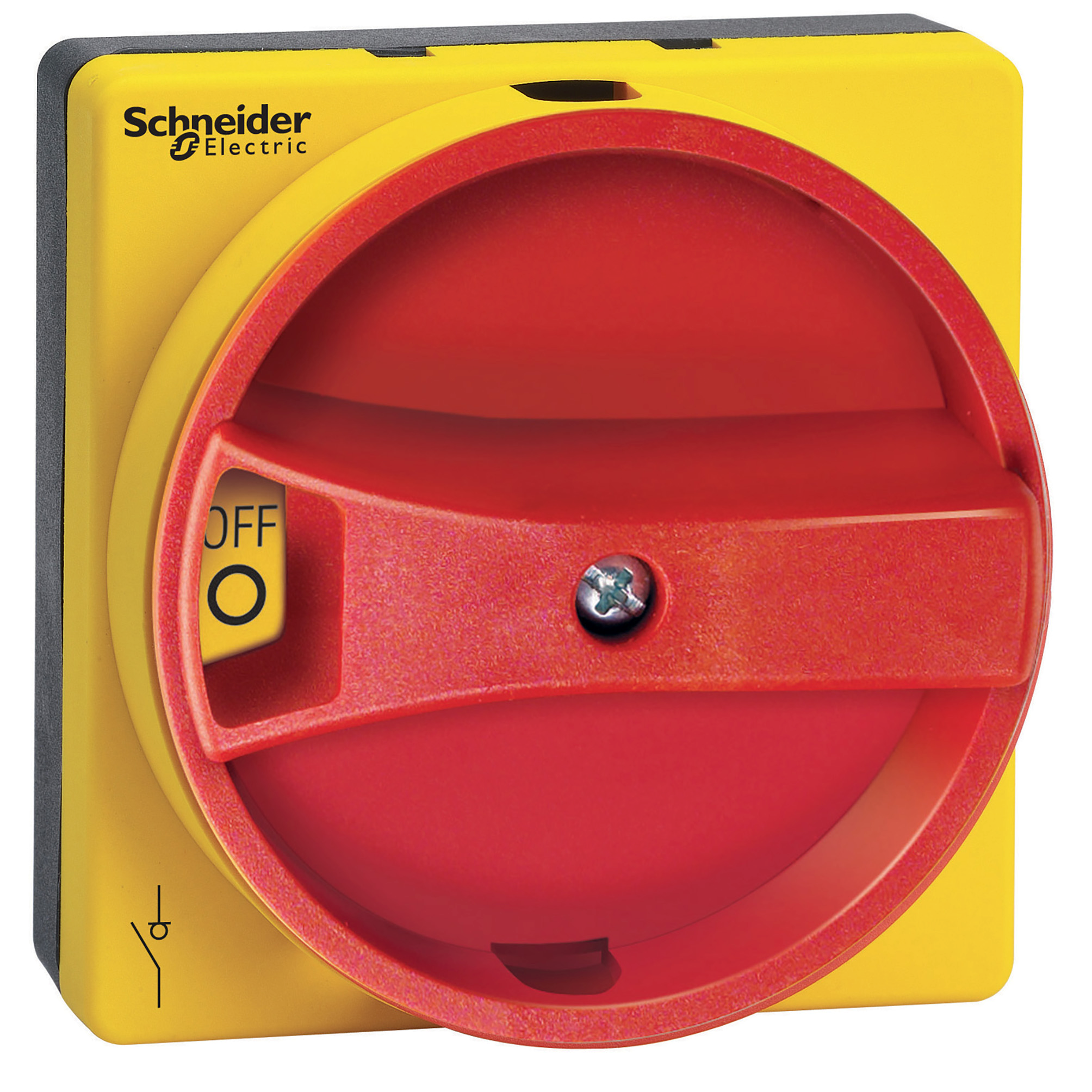

TeSys VLS - rec. rot. handle - screwfixing - red - shaft 5 mm - 65x65 mm. Label: Tesys VLS - range: TeSys - device short name: VLSH - product or component type: rotary handle - range compatibility: - handle colour: red - handle front plate colour: yellow - rotary handle padlocking: 1 to 3 padlocks 4-8 mm - marking: 0 - 1 - Range Presentation: Features
- Power Poles
- From 16 A to 125 A
- Only 2 body sizes (Width: 36mmà40A and 70mmà125A )
- From 3 to 8 power poles switch-disconnectors
- Door or Din Mounted versions
- Additionnal Power pole (simultaneous or early Make )
- 6-8 poles Interlock switch disconnector or changeover
- Front Handle to Switch ON/OFF directly on Din rail pole Unit (1padlock 4mm)
- Sets of Poles cover in option
Handles:
- Red/yellow or Black,
- Recessed, Protruding and Pistol Rotary Handles
- Defeatable according UL508
- Sizes: 65*65mm, 48*48mm, 75mm diam (Pistol)
- Padlockable with 1 to 3 padlocks (4 to 8mm diameters
- Door Fixing by 4 screws or a single 22mm hole + ring

Additionnal Auxiliary contacts
- For Door and Dinrail mounting
- Simultaneous or Early Brake contacts
Shaft : from 90mm to 500mm/ 5*5mm
Fuse Holder: can be mounted on 36mm Dinrail Pole unit, up to 25Amp (UL508)

Certifications
- EAC, UL508, UL98,CSA

Mechanical and environment characteristics
- Handles protection : IP65, IP66 and Nema 1,2,3R,4,4X,12,12K .(Outdoor Use)
- Operating temperature : -25°C to +55°C
- Storage temperature : -40°C to °70°C
- Range Benefits:
Extensive choice
- Possibilities to fix the pole unit on Door or DinRail
- Large choice of handles.(red and black, defeatable or not, pistol, 48mm..)
- Auxiliary Power, neutral and ground poles (simultaneous and Early make versions)
- Auxiliary contacts (simultaneous and Early-break versions)

Tool less system for:
- Mounting the Pole Unit on Din rail
- Assembling of Power body with Power poles, Neutral or ground poles and Auxiliary contacts by side clipping the components
Enclosure Space savings
- 2 compact body size: 36mm up to 40A and 70mm width from 63A to 125A
- Additional Fuse Holder directly mounted on Dinrail 36mm pole units (up to 25Amp)
- Low profile handles
- Possibility to mount the Din rail pole unit horizontally (anti-sliding Dinrail locking)
- Dinrail Unit can be mounted on Modular panels and actuated just with the local handle

Easy to use
- Standard or Defeatable Handles (UL508) on Enclosure doors
- Padlockable Local Handle directly mounted on Pole unit to operate when the door is open (during settings for example)
- Recessed, protruding or pistol handles
Export
- EAC,UL98,UL508,CSA certifications - Range Application Presentation:
Wide scope of applications:
- For Industrial and building fields
- Main control panels for all type of machineries
- Local enclosures to isolate just a part of machine
- Isolated small cabinets closed to motors (recommended when the motor is not visible from the control panel for safe maintenance) àLarge machines, conveyors, Air extractors on roof with indoor control panels, Lifts&elevators...
- 4th Pole to switch ON/OFF the neutral if necessary (ex-building applications: lighting, heating)
- 6 poles for 2 speed-motors such as Air extractors in Car parking
- Manual Source changeover to commute on a 2nd supply circuit
- Modular format for Din rail Units for building applications
