1023700000 | WDU 2.5N |W-SERIES - Feed through Terminal | clamping yoke technology

Stock Code: 1023700000

1055 In Stock for despatch

Product Description

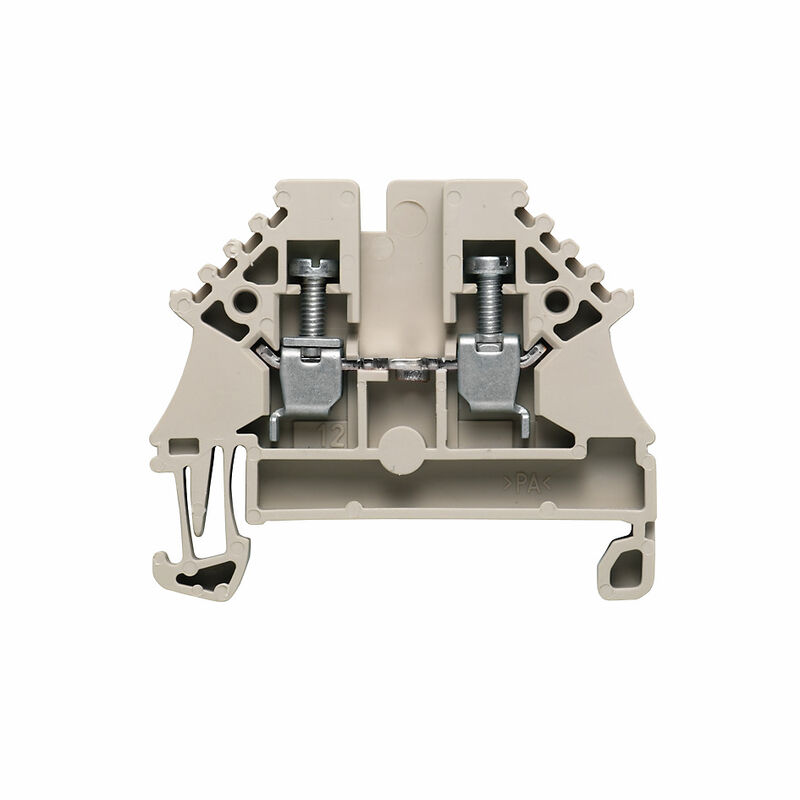

Weidmuller | 1023700000 | WDU 2.5N | W-SERIES - Feed through Terminal | clamping yoke technology - Compact

Do you need a reliable terminal? Take a look at the Weidmuller W-Series terminal block with a screw connection or better known as the clamping yoke technology. By implementing this compact terminal block you are guaranteed the ultimate in contact safety. Weidmuller 1023700000 (WDU 4) can be used globally, thanks to its approved national and international approvals and qualifications.

The W-Series from Weidmuller screw connection has long been an established connection element to meet exacting demands regarding reliability and functionality. Plus the W-Series is still setting standards.

Version: Double-tier terminal, Screw connection, 2.5 mm², 800 V, 24 A, dark beige
Order Number: 1023700000
Type: WDU 2.5N
Product Dimension: 37 x 44 x 5.1mm
Continuous Operating Temperature min…max: -60?…130?
Current (ATEX): 24 A
Max. Voltage (ATEX): 352 V
End Cover plate required: Yes
Rail: TS 35
Wire connection AWG Min...Max: 12…26
Standards: IEC 60947-7-1
Version: Screw Connection, for plug-in cross connector, for screwable cross-connection, one end without connector.
Type of mounting: SNAP-ON

Additional Information

The W-Series offers many convincing benefits and comes in four different designs. Thanks to the range of models and real flexibility, our modular terminal blocks with clamping yoke technology can be used in a wide range of different applications. Whatever your requirements for the control cabinet are: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety.
