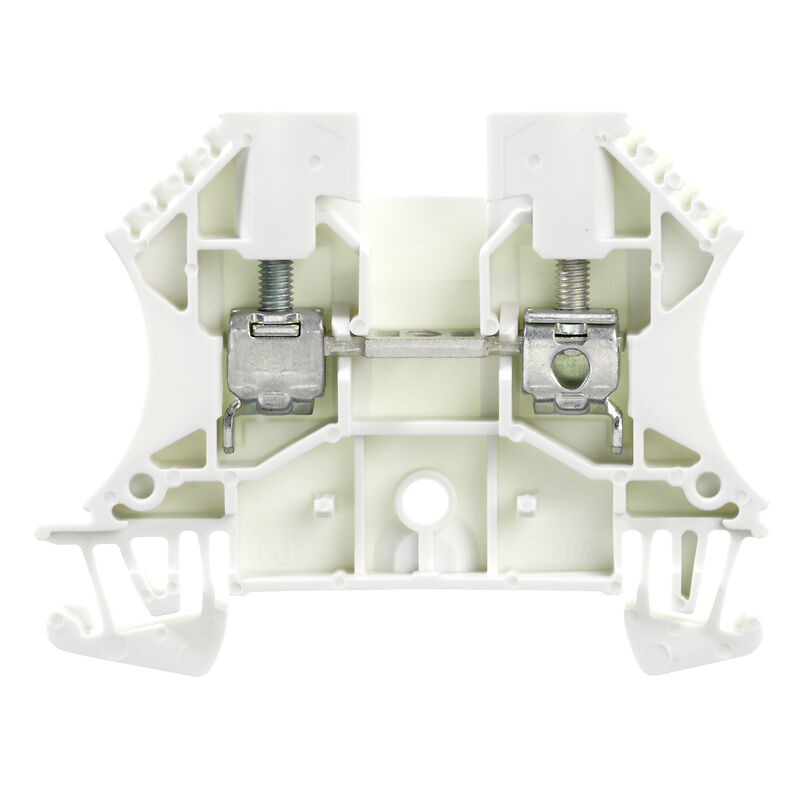

1036700000 | WDU 4 WS | W-SERIES - Feedthrough Terminal Blocks | Clamping Yoke Technology

Stock Code: 1036700000

100 In Stock for despatch

Product Description

Weidmuller | 1036700000 | WDU 4 WS | W-SERIES - Feedthrough Terminal Blocks | Clamping Yoke Technology - Standard, Tier 1

Weidmuller feedthrough terminal with clamping yoke technology (screw-in connection) you are guaranteed contact safety. The Weidmuller W-Series 1036700000 (WDU 4 WS) is the perfect solution to add to your applications. This application's max voltage is 400 V with a current of 24 A in a dark beige colour.

The W-Series from Weidmuller screw connection has long been an established connection element to meet exacting demands regarding reliability and functionality. Plus the W-Series is still setting standards.

Version: Feed-through terminal, Screw connection, 4 mm², 800 V, 32 A, white
Order Number: 1036700000
Type: WDU 4 WS
Product Dimension: 46.5 x 60 x 6.1mm
Continuous Operating Temperature min…max: -60?…130?
Max. Voltage (ATEX): 800 V
Current (ATEX): 32 A
Rail: TS 35
Wire connection AWG Min...Max: 10…26
Standards: IEC 60947-7-1
Type of mounting: SNAP-ON

Additional Information

The W-Series offers many convincing benefits and comes in four different designs. Thanks to the range of models and real flexibility, our modular terminal blocks with clamping yoke technology can be used in various applications. Whatever your requirements for the control cabinet are: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety.
