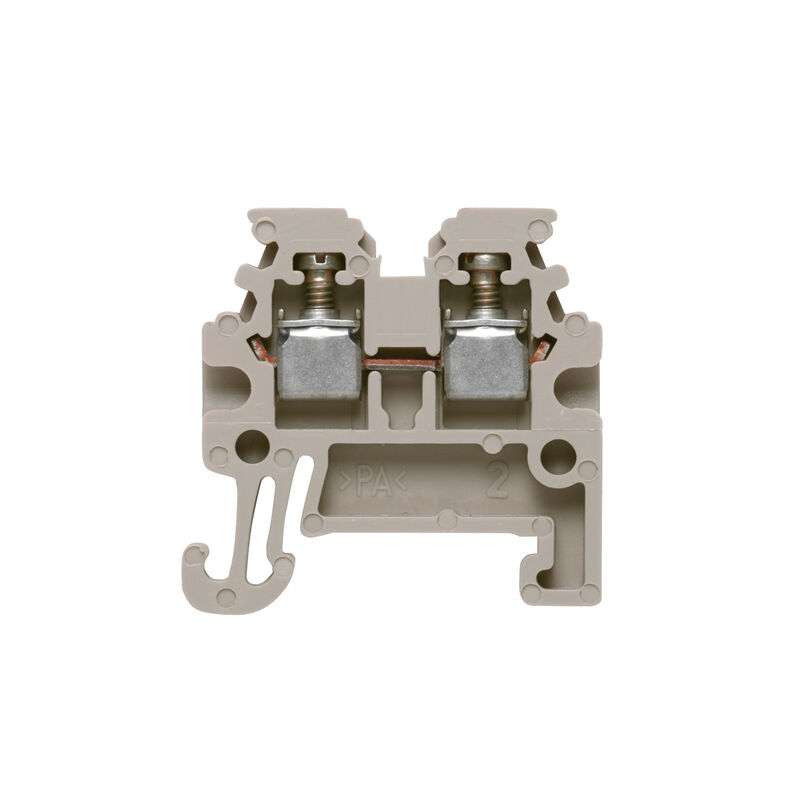

Weidmuller | 1753280000 | WDU 1.5/R3.5 | W-SERIES - Feedthrough Terminal Block | Clamping Yoke Technology - Standard, 1 Tier
Weidmuller provide a range of universal terminals blocks for high level of productivity in panel building applications this includes mini modular terminal block for enclosure wiring. The 1753280000 ( WDU 1.5/R3.5) is the perfection solution thanks to its compact design. The mini Mini rail-mounted terminal blocks are ideal for working in confined spaces such as small housings and terminal boxes.
The W-SERIES from has long been an established connection element to meet exacting demands regarding reliability and functionality. Plus the W-Series is still setting standards. The clamping yoke technology (screw clamp) ensures the ultimate in contact safety as the clamping yoke properties compensate for temperature-indexed changes to the conductor to prevent loosening and offer a vibration-resistant connection
Version: W-Series, Feed-through terminal, Rated cross-section: 1.5 mm², Screw connection
Order Number: 1753280000
Type: WDU 1.5/R3.5
Product Dimension: 24 x 24.5 x 3.5mm
Continuous Operating Temperature min…max: -60?…130?
Rated Voltage: 275 V
Rated Current: 15 A
Rail: TS 35
Wire connection AWG Min...Max: 14…26
Standards: IEC 60947-7-1
Version: Screw Connection, for plug-in cross connector, for screwable cross-connection, one end without connector.
Additional Information
The W-Series offers many convincing benefits and comes in four different designs. Thanks to the range of models and real flexibility, our modular terminal blocks with clamping yoke technology can be used in a wide range of different applications. Whatever your requirements for the control cabinet are: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety.
