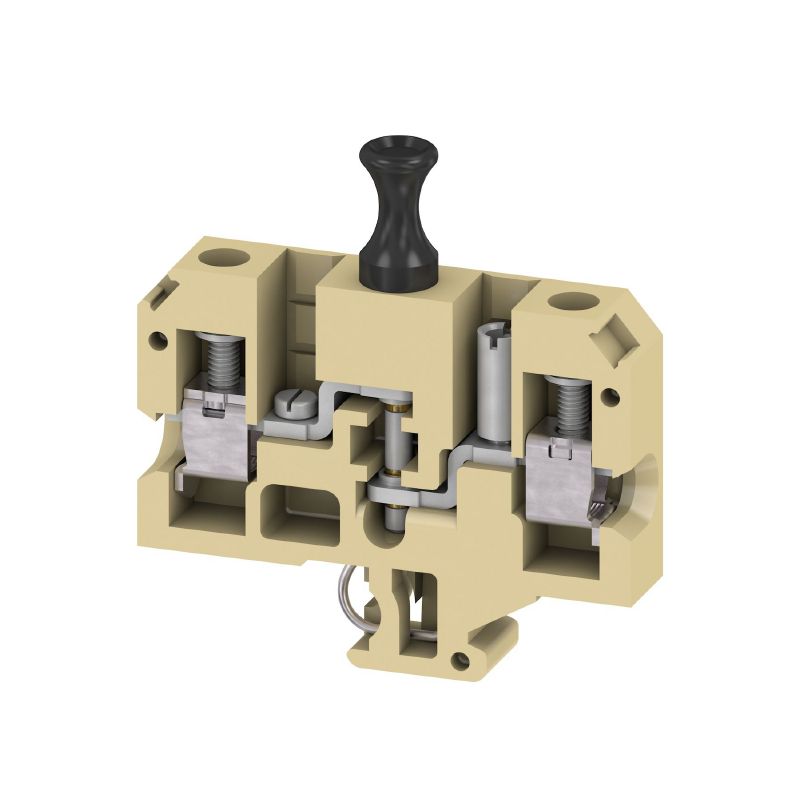

1855610000 | WTR 2.5 | W-SERIES - Modular Test - Disconnect Terminal Block

Stock Code: 1855610000

Call for availability on 0345 030 60 80

Product Description

Weidmuller | 1855610000 | WTR 2.5 | Clamping Yoke Technology | W-SERIES - Modular Test - Disconnect Terminal Block - Signal Marshalling

The 1855610000 (WTR 2.5) modular testing terminal with signal marshalling enables an extremely compact yet clear panel design. The additional signals for automation can be easily connected and processed.

Adding a test point or a disconnected element to the feed through the terminal for testing and safety purposes is a great idea. Weidmuller has designed test disconnect terminals where you can measure electric circuits in the absence of voltage. While the disconnecting points' clearance and creepage distance is not assessed in dimensional terms, the specified rated impulse voltage strength must be proven.

Version: Test-disconnect terminal, Screw connection, 4 mm², 500 V, 32 A, Pivoting, dark beige1855610000

Order Number: 7910180000

Type: WTR 2.5

Product Dimension: 48 x 60 x 5.1mm

Continuous Operating Temperature min…max: -50?…120?

Rated Voltage: 500 V

Rated Current: 21 A

Rail: TS 35

Wire connection AWG Min...Max: 12…30

Standards: IEC 60947-7-1

Type of mounting: When screwed in

Additional Information

The W-Series offers many convincing benefits and comes in four different designs. Thanks to the range of models and flexibility, our modular terminal blocks with clamping yoke technology can be used in various applications. Whatever your requirements for the control cabinet are: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety
