The PNOZmulti 2 is small but packs a punch! PILZ standalone base unit is within the PNOZmulti 2 range and offers plenty of functions in compact housing. The PNOZmulti 2 is a modular, configurable safety controller that can be used in a wide range of machines and applications. It is safe, flexible, and easy to use, making it the perfect choice for ensuring the safety of your machine and operators.
PNOZmulti 2 Controllers - The Basis for Your Application
The PNOZmulti 2 Controllers are the go-to solution for monitoring safety functions and performing standard control functions in various industries. With their modular design, you can customise your control system by selecting a base unit and adding the required number of expansion modules. This ensures that your control system perfectly meets the needs of your application.
Compact, Powerful, and Easy to Use
PILZ standalone base unit, the PNOZ m C0, is as narrow as a safety relay but as powerful as a safety controller. With its compact design and eight configurable safe inputs and four safe semiconductor outputs, it can monitor up to four safety functions on your machines. It complies with safety requirements up to PL e of EN ISO 13849-1 and SIL CL 3 of EN IEC 62061, making it suitable for a range of industries and applications such as packaging, robotics, and food and beverage.
Unmatched Flexibility and Adaptability
No matter the machine type, plant type, application, or industry, PILZ PNOZmulti 2 Controllers provide a reliable and flexible solution. As your machine's safety functions grow, you can easily migrate to PILZ modular and expandable base units, such as PNOZ m B0, PNOZ m B0.1, or PNOZ m B1. With the ability to configure inputs and outputs to suit your specific application, PILZ controllers offer "Many functions - one solution!" for over 20 years.
Features of the PNOZ m C0
8 safe inputs, up to 2 can be configured as auxiliary outputs
4 safe semiconductor outputs – up to PL e, SIL CL 3, depending on the application
2 test pulse outputs, both of which can be configured as standard outputs
Not modular and expandable
Can be configured in the software tool PNOZmulti Configurator from Version 11.1
A chip card as an optional storage medium
Expand the capabilities of your PNOZ m C0 with PILZ safe sensor technology offerings, including safety gate systems, safety light curtains, and safety switches.
PILZ PNOZmulti Configurator

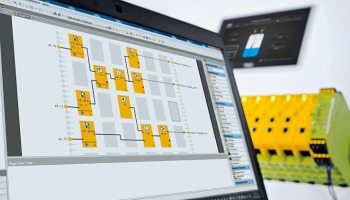

The original safety circuit configuration tool for the small controllers PNOZmulti. Your safety circuit is easy to create on the PC using the PNOZmulti Configurator. The configuration tool supports you with project design, configuration, documentation, and commissioning of the Pilz small controllers.
PNOZmulti Configurator software version 11.2 introduces several new features that make it even more powerful and versatile. These features include:
A key-in-pocket solution for lockout-tagout and unauthorized restart protection.
A standalone base unit PNOZ m C0 with a security key that meets the requirements of the proposed new Machinery Regulation.
Two new function elements for the safe analogue input module PNOZ m EF 4AI allow for more precise and reliable monitoring of analogue values.
The ability to connect up to 6 output modules PNOZ m ES 14 DO to the base unit PNOZ m B1, for greater flexibility when activating standard outputs.
These new features make PNOZmulti Configurator software version 11.2 an ideal choice for a wide range of safety applications, from small machines to large industrial plants.
Please contact your local branch for more information regarding PILZ PNOZ MC 0 Controller.
