More productivity through robust guard locking with Pilz electromagnetic safety locking device PSENslock range. By implementing the safety device, you can safeguard both swing gates and sliding gates, as well as covers and flaps efficiently, up to the highest category PL e, Cat. 4 of EN ISO 13849. Manipulation protection on the RFID safety switch offers reliable process protection for maximum productivity.

Introducing the newest Electromagnetic safety locking device

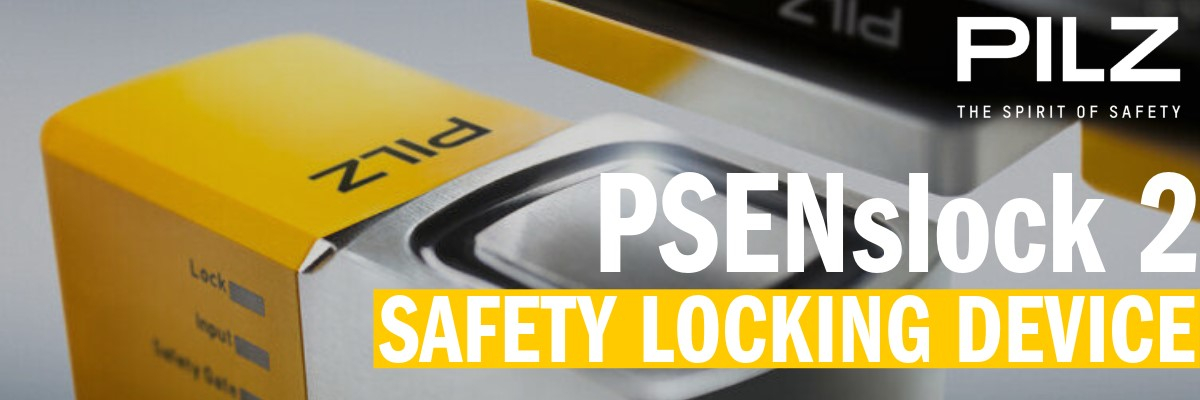

PSENslock 2

The PSENslock 2 is tried and tested within the plant and machinery industries, protecting all process applications. Based on these results Pilz PSENslock 2 brings a whole new way of protecting your applications thanks to its new features, providing efficient process guarding, and even more in rugged environment conditions.pilz-psenslock-2

Pilz safety locking device PSENslock 2 offers a maximum holding force of either 1000 or 2000 N, whilst offering a protection type of IP67/ IP69K. Pilz has crafted a safety device that has hygiene in mind, insensitive to dust and water preventing dirt deposits. Special versions with stainless steel components are also available for more hygiene-critical applications in the packaging industry.

Safety gate guarding with PSENslock 2

Whether separately or in series, PSENslock 2 can be used universally for safety gate guarding. PSENslock 2 offers reliable protection for hygiene-critical applications such as those in the packaging industry, food and beverage, or pharmaceutical industry, for example. Extended diagnostic options are available in combination with the intelligent diagnostic system SDD, allowing availability to be increased even further.

Can be used for personnel protection

For applications that require safeguard locking in personnel protection, there is also a version available that safely monitors the holding force. Usable up to PL d, Cat. 2, this version enables a holding force of 1000 N.

Safeguarding of swing gates and sliding gates with PSENslock 2

  • PSENslock 2 safely connected in series with intelligent diagnostics using Safety Device Diagnostics (SDD): reduces wiring and shortens commissioning times
  • Complete solution with safe small controller PNOZmulti 2.

PSENslock 2 benefits

Work productively, even in rugged environments

  • Insensitive to dust, dirt and waterpilz-psenslock-4
  • High availability: flexibly mounted actuator with large contact surfaces easily offsets tolerances even with safety gate misalignment
  • High productivity: manipulation protection prevents unwanted production interruptions; coding freely selectable
  • Intelligent diagnostics in series connection via Safety Device Diagnostics (SDD): less wiring needed thanks to safe series connection up to PL e
  • Long service life through non-contact transponder technology and magnetic guard locking
  • Simple installation saves time during commissioning

Features of the safety locking devices PSENslock 2

  • Reliable process protection: holding force F1max, optionally 1,000 or 2,000 N (PSENslock: 500 N / 1,000 N)
  • Protection type IP67 / IP6K9K (PSENslock: IP67)
  • Convenient diagnostics via 4 LEDs on both sides enable direct status indication
  • Can be adapted to individual requirements through adjustable latching force via configuration key "Config Key"

Version with safety outputs that are independent of guard locking: the safety outputs (OSSDs) on the safety locking device switch independently from the guard locking status and enable greater flexibility when implementing your application.



For more information about PILZ Electromagnetic Safety Locking PSENslock 2 Device
please contact your local branch.
