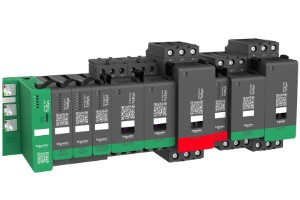

Speed up builds, cut time to market, and collect machine data with TeSys island digital load management system for motor applications up to 40 HP. The TeSys Island is a digital motor load management solution that makes machines smarter and more reliable. This series is a digitally powered monitoring, control, and protection of electric motors up to 80 A (37 kW/ 400 V). Schneider Electric has designed this application to switch, protect, manage motors, and protect electrical loads up to 80 Amps (AC3) in an electrical control panel.
This motor control solution is a fully digitized, object-oriented load management system and an industry 4.0 compliant data provider, that reduces machines’ time to market, enabling OEMs to move forward in their industry 4.0 journey. The TeSys Island object-oriented approach provides:
Application selection and system configuration simplified.
Engineering tasks are automated & reduced.
Enabling a faster machine installation phase.
The object-oriented approach of the TeSys Avatars allows workers to focus on machine design, integration, and control, rather than on the selection and commissioning of each electro-mechanical component.The TeSys avatar approach simplifies application and system configuration and reduces engineering tasks. Thus TeSys™ island makes the machine engineering and installation phase much faster.
TeSys Island offers an easy installation of DIN rail with one-clicking mounting, with no need for control wiring modules. Adding to this, no auxiliary wiring is required, thanks to full connectivity over Fieldbus.
Following on from this, TeSys island supports major automation field buses such as EtherNet/IP, Modbus TCP, Profinet, and Profibus. It is readily integrated into EcoStruxure™ Machine Expert by Schneider Electric as well as Rockwell’s Studio 5000 and easily integrate into 3rd party TIA portal.
The TeSys Island provides easy and remote access to predictive and preventive application data, which leads to early diagnostics and maintenance. A versatile application that optimizes and provides high-performance machines that can be installed in various industries such as Food & beverage, Material working, and handling, Small pumps: particularly in food & beverage, manufacturing, and logistics segments, and Packaging.
Additional Features
TeSys™ island manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
No control or auxiliary wiring required, thanks to full connectivity over fieldbus.
All adjustments and settings are digitized, no mechanical dials or dip switches.
Fully compliant to international standards (IEC / UL / CSA 61010, IEC / UL / CSA 60947, GB/T14018)
Applications Schneider Electric TeSys Island Benefits
TeSys island allows intuitive and simplified engineering of machines while reducing time to market and features a catalog of TeSys Avatars representing load functionalities and basic applications, conceptual to digital twin in industry 4.0.
The TeSys Island offers users to select electro-mechanical devices without specific expertise, thanks to the online Motor Control configuration. An application that can be easily commissioned through its integration with the EcoStruxure Machine Expert Engineering Suite.
Additionally, Schneider Electric TeSys Island reduces machine stoppages time with secured remote resets for a fast and easy restart, whilst eliminating the need for additional inputs and outputs modules (I/Os) for control.
Data Provider
The TeSys island provides data that enables the end-user to make intelligent decisions ahead of time, thanks to pre-alarms that help reduce machine stoppages as well as machine downtime.
Due to the integrated Operation and Maintenance Tool (OMT) as a web server, commissioning, maintenance, diagnosis, and troubleshooting is easily performed even w/o the need for the installation of any software. By connecting TeSys island to the EcoStruxure Machine architecture, it is possible to track, monitor, and increase system performance remotely, and conduct maintenance outside operational hours.
Improve project profitability and customer satisfaction.
Save on design, wiring, and commissioning time by up to 40%. Reduce installation costs by 30%, compared with traditional solutions.
Only one connection to the field bus
Accommodates up to 20 modules.
No auxiliary wiring needed.
Intelligence resides within the bus coupler module, the brains of the island.
Please contact your local branch for more information regarding the Schneider Electric TeSys Island range. Alternatively, you can place your order via the link below.
