Designed for finger and hand protection, SLC4 prioritizes safe machine operation by preventing unauthorized access. Both Base and Standard-Muting models cater to diverse needs, including complex muting scenarios. The unified platform ensures seamless upgrades and retrofits, minimizing downtime and simplifying maintenance.
APPLICATIONS
Access protection (finger and hand protection)
Monitoring of access points and hazardous areas
Vertical and horizontal protection
THE SLC4 SERIES FEATURES
THE SLC4 SERIES BENEFITS
Safety light curtain AOPD type 4

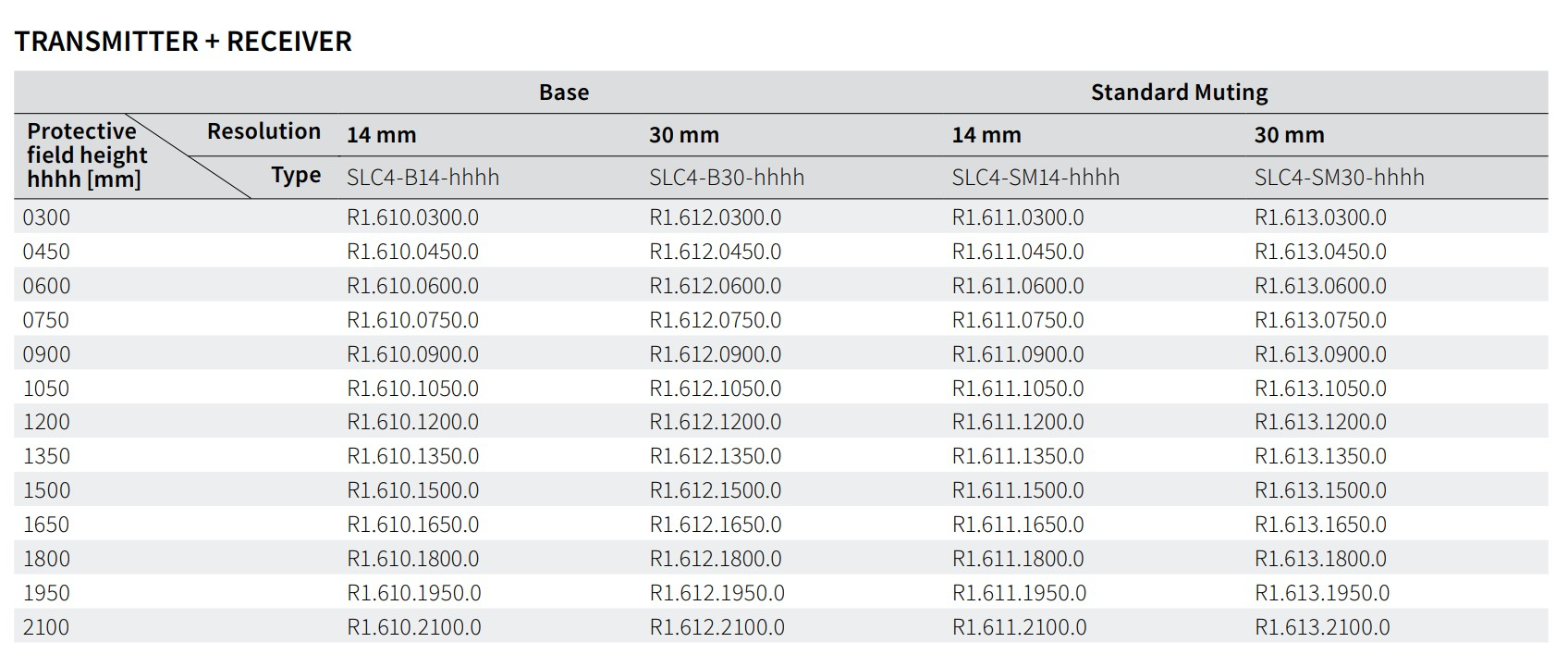

Beam resolution 14- and 30-mm Protection field heights from 300 up to 2100 mm
Standardized connection technology (M12)
Ranges up to 30 m can be implemented
Base and Standard-Muting variants available
One package: SLC4-Sets incl. brackets and pigtail (M12 connection)
Accessories for installation, mounting, and muting are optional and available
Configuration without software
Zero dead zone
All models are based on the same platform
Cleary visible LEDs for on-site diagnostic
Protective field heights from 300 up to 2100 mm
Easy and fast installation without programming (Plug&Play for Base models)
Space-saving installation and flexible integration in the machine
Easy replacement without design changes + reduced number of required accessories
Fast on-site diagnostic to reduce downtimes of the machine
Suitable devices for almost every application.
SAFETY LEVEL
Up to PL e / Category 4 (EN ISO 13849-1)
Up to SILCL 3 (EN 62061)
SLG4 SERIES
RELIABLE AND COST-EFFICIENT ACCESS PROTECTION AT HAZARDOUS AREAS
The SLG4 series offers dependable and economical access protection for hazardous areas. A single SLG4 system can cover distances up to 70 meters and is ideal for safeguarding extensive machine or production floor spaces. Its rugged aluminium housing and IP67 protection rating (EN 60529) ensure maximum safety and performance even in challenging environments.
APPLICATIONS
Access and entry/exit protection (personal protection)
Safeguarding of hazardous areas (long distances)
THE SLG4 SERIES FEATURES
THE SLG4 SERIES BENEFITS
Safety light grids AOPD type 4
2-, 3- and 4-beam systems
Protection field heights from 500 up to 1200 mm
Standardized connection technology (M12)
Ranges up to 70 m can be implemented
Base and Standard-Muting variants available
One package: SLG4-Sets incl. brackets and pigtail (M12 connection)
Accessories for installation, mounting, and muting are optional available
Configuration without software
Robust design, operating temperature -30°C up to +50°C and protection degree IP67
Finger/hand/body models are based on the same platform
Visible LEDs for on-site diagnostic
Emitter, receiver, brackets, and pigtail (already connected) included in the package
Easy and fast installation without programming (Plug&Play for Base models)
Reliable and safe use even under harsh environmental conditions
Easy replacement without design changes + reduced number of required accessories
Fast on-site diagnostic to reduce downtimes of the machine and easy alignment of safety light grid
Reduced assembly work and fast commissioning
SAFETY LEVEL
Up to PL e / Category 4 (EN ISO 13849-1)
Up to SILCL 3 (EN 62061)
For help selecting the right safety light curtain or grid, please contact your local branch. Our sales team will be happy to assist you.
