Spring connection with PUSH IN technology
Increase efficiency in installation without compromising on safety

With their simple handling and compact yet clear design, the new A-Series PUSH IN modular terminal blocks allow you to benefit from faster installation times and, in turn, from much higher productivity. Subsequent modifications and rewiring are possible using the simple functional principle and the two-sided, spring-loaded mounting foot without the need for any special tools.

Safety is not neglected either: the innovative, spring-based direct insertion also guarantees vibration-resistant, gas-tight contacts even in challenging applications.

With PUSH IN connections, the prepared conductor is simply inserted into the clamping point and a reliable, vibration-resistant, and gas-tight connection is established. The integrated pusher allows the conductor to be easily released with a screwdriver.

Benefits of PUSH IN technology

The innovative A-Series PUSH IN connection system reduces connection times for solid wires and wires crimped on wire-end ferrules. These terminal blocks can be directly connected without tools for speed and safety.

- Up to 50% less time spent on installation
- Simple modification and extension
- Faster maintenance work

Due to the comprehensive selection of accessories and the various cross-connection options, these modular terminal blocks with PUSH IN technology are the perfect solution for all requirements.

- Release of conductor without any tool
- Flexible mounting foot for compensation of different terminal rail dimensions
- Clear differentiation of functional areas
- Slim design for large amount of cabinet space
- Vibration-resistant and gas-tight connection with copper power rails and stainless steel spring

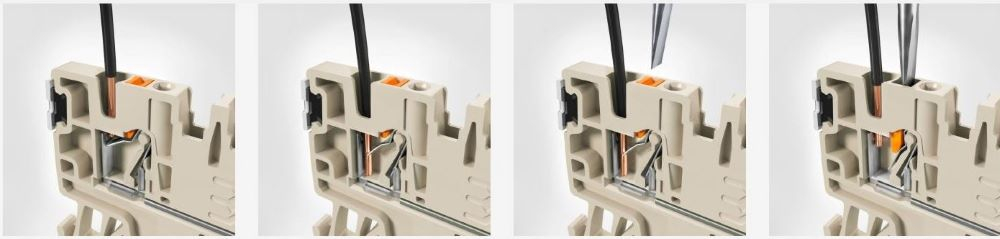

- The conductor is simply inserted into the clamping point up to the stop. Once in position, the spring holds it in place without damage.
- The spring is positioned so that it does not exert any force on the terminal housing. Regardless of whether a conductor is connected or not.
- The conductor can be easily released just as easily and without damage. The orange pusher can be pushed down with a standard scredriver opening the spring and releasing the conductor.

For more information on the Weidmuller A-series Range, contact your local branch today.
